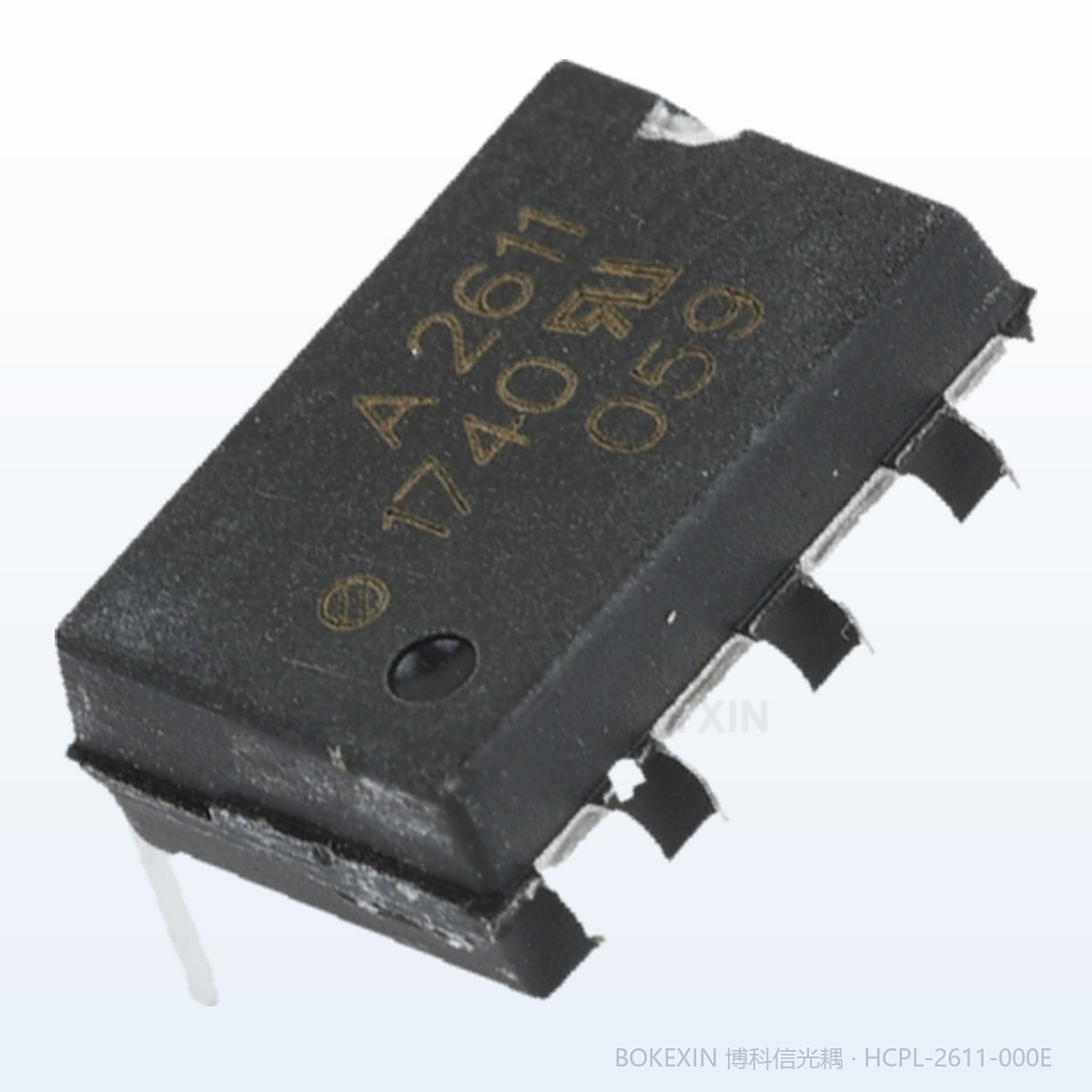

本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。
产品应用与封装尺寸

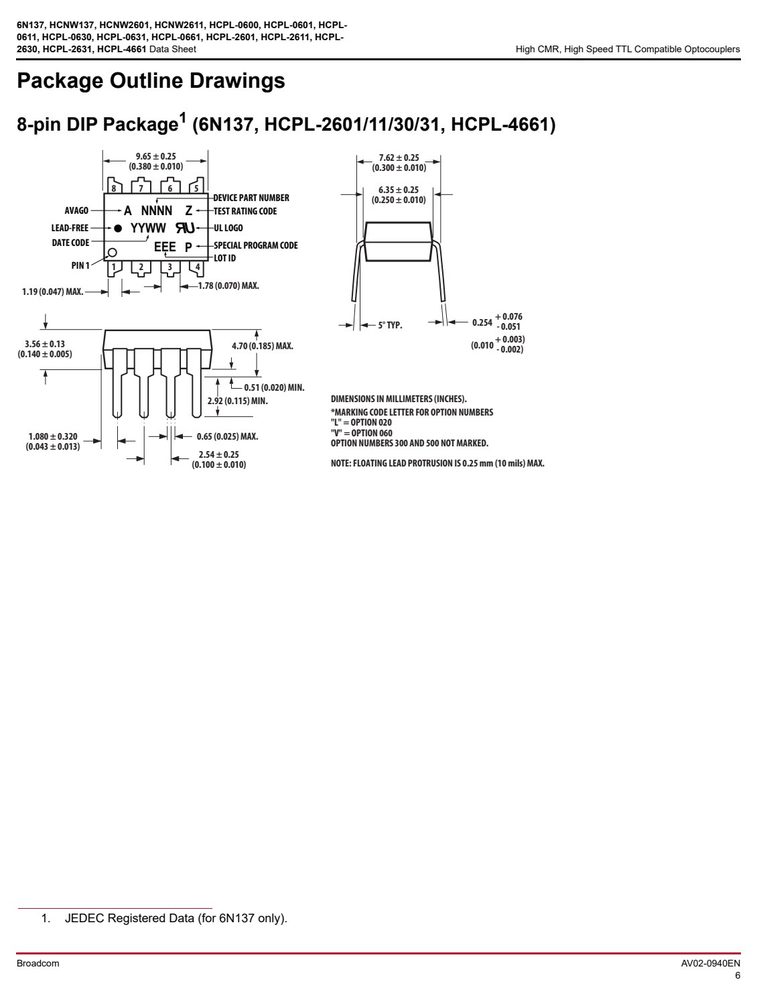

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | GND | |
| 6 | VO | |
| 7 | VE | |
| 8 | VCC |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电流 IF
- 5
- 电源电压 VCC
- 1
- 工作温度 TA
- –1.9

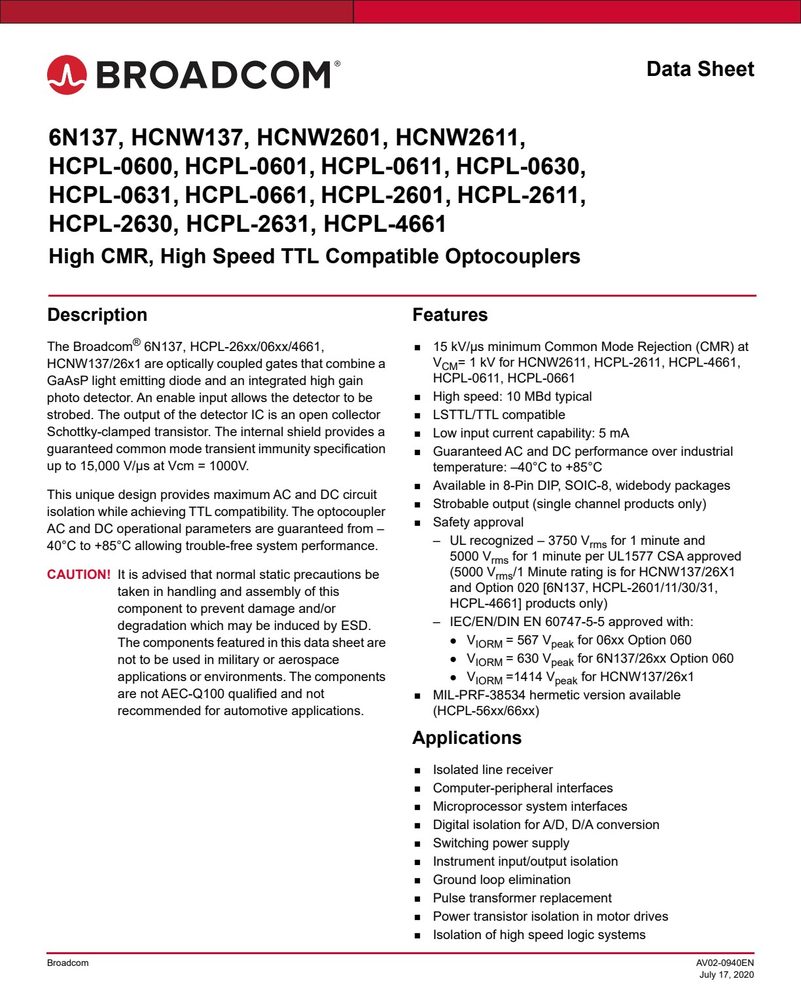

产品特点 Features
- The Broadcom 6N137, HCPL-26xx/06xx/4661,
- HCNW137/26x1 are optically coupled gates that combine a
- GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector
- Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification up to 15,000 V/µs at Vcm = 1000V.
- This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler
- 15 kV/µs minimum Common Mode Rejection (CMR) at
- V = 1 kV for HCNW2611, HCPL-2611, HCPL-4661,
- HCPL-0611, HCPL-0661
- High speed: 10 MBd typical
- LSTTL/TTL compatible
- Low input current capability: 5 mA
- Guaranteed AC and DC performance over industrial temperature: –40°C to +85°C
- Available in 8-Pin DIP, SOIC-8, widebody packages
- Strobable output (single channel products only)
- 6N137, HCNW137, HCNW2601, HCNW2611,
- 0611, HCPL-0630, HCPL-0631, HCPL-0661,
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | Packagea | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|
| Storage Temperature | T | –55 | 125 | °C | ||
| Operating Temperatureb | T A | –40 | 85 | °C | ||
| Average Forward Input Current | I | Single 8-Pin DIP | — | 20 | mA | c |
| Dual 8-Pin DIP | — | 15 | d, e | |||
| Widebody | — | 3 | ||||
| Input Power Dissipation | P | Widebody | — | 40 | mW | |
| Single 8-Pin DIP | — | 36 | ||||
| Dual 8-Pin DIP | — | 27 | ||||
| Supply Voltage (1 Minute Maximum) | V | — | 7 | V | ||
| Enable Input Voltage (not to exceed | V | Single 8-Pin DIP | — | V + 0.5 | V | |
| Enable Input Current | I | — | 5 | mA | ||
| Output Collector Current | I | — | 50 | mA | d | |
| Output Collector Voltage | V | — | 7 | V | d | |
| Output Collector Power Dissipation | P | Single 8-Pin DIP | — | 85 | mW | |
| Dual 8-Pin DIP | — | 60 | d, f | |||
| Lead Solder Temperature (Through | T | 8-Pin DIP | — | 260°C for 10 s, | ||
| Hole Parts Only) | 1.6 mm below | |||||
| Widebody | — | 260°C for 10s, up | to |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | (300 | Mil) | SO-8 | (400 | Mil)2 | 单位 | 条件 |
|---|---|---|---|---|---|---|---|---|
| 8-pin | DIP | Widebody | ||||||
| Minimum External Air Gap | L(101) | 7.1 | 4.9 | 9.6 | mm Measured | from input terminals to output | ||
| (External Clearance) | terminals, | shortest distance through air. | ||||||
| Minimum External Tracking | L(102) | 7.4 | 4.8 | 10.0 | mm Measured | from input terminals to output | ||
| (External Creepage) | terminals, | shortest distance path along | ||||||
| Minimum Internal Plastic | Gap | 0.08 | 0.08 | 1.0 | mm Through | insulation distance, conductor | ||
| (Internal Clearance) | to | conductor, usually the direct distance | ||||||
| between | the photoemitter and | |||||||
| photodetector | inside the optocoupler | |||||||
| Minimum Internal Tracking | NA | NA | 4.0 | mm Measured | from input terminals to output | |||
| (Internal Creepage) | terminals, | along internal cavity. | ||||||
| Tracking Resistance | CTI | 200 | 200 | 200 | V DIN IEC | 112/VDE 0303 Part 1 | ||
| Isolation Group | IIIa | IIIa | IIIa | Material Table 1) | Group (DIN VDE 0110, 1/89, | |||
| Option 300 – Surface | mount classification | is | Class A in | accordance | with | CECC | 00802. | |
| Broadcom | AV02-0940EN |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 封装 | 最小 | 典型 | 最大 | 单位 | 测试条件 | Figure | 备注 |
|---|---|---|---|---|---|---|---|---|---|
| A | CC | A | |||||||
| High Level Output | I OH a | All | — | 5.5 | 100 | µA | V CC = 5.5V, V E = 2.0V V = 5.5V, I = 250 μA | 1 | b, c, d |
| Input Threshold | I | Single Channel | — | 2.0 | 5.0 | mA | V = 5.5V, | 2, 3 | d |
| Current | Widebody | V = 2.0V, | |||||||
| Dual Channel | 2.5 | V = 0.6V, | |||||||
| I (Sinking) = 13 mA | |||||||||
| Low Level Output | V OL a | 8-Pin DIP, SO-8 | — | 0.35 | 0.6 | V | V CC = 5.5V, | 2, 3, 4, | b, d |
| Voltage | Widebody | 0.4 | V E = 2.0V, I F = 5 mA, | 5 | |||||
| I (Sinking) = 13 mA | |||||||||
| High Level Supply | I CCH | Single Channel | — | 7.0 | 10.0* | mA | V = 0.5V V = E CC | e | |
| Current | 5.5V, I = 0 mA | ||||||||
| — | 6.5 | — | V = V , V = 5.5 V, I = 0 mA | ||||||
| Dual Channel | — | 10 | 15 | Both Channels | |||||
| Low Level Supply | I | Single Channel | — | 9.0 | 13.0* | mA | V = 0.5V, | f | |
| Current | V = 5.5V, I = 10 mA | ||||||||
| — | 8.5 | — | V = V , V = 5.5V I = 10 mA | ||||||
| Dual Channel | — | 13 | 21 | Both Channels | |||||
| High Level Enable | I EH | Single Channel | — | –0.7 | –1.6 | mA | V = 5.5V, V = 2.0V CC E | ||
| Low Level Enable | I EL a | — | –0.9 | –1.6 | mA | V CC = 5.5V, V E = 0.5V | g | ||
| High Level Enable | V | 2.0 | — | — | V | d | |||
| Low Level Enable | V | — | — | 0.8 | V | ||||
| Input Forward | V F | 8-Pin DIP | 1.4 | 1.5 | 1.75a | V | T = 25°C, I = 10 A F | mA 6, 7 | b |
| SO-8 | 1.3 | — | 1.80 | I = 10 mA | |||||
| Widebody | 1.25 | 1.64 | 1.85 | T = 25°C, I = 10 | mA | ||||
| 1.2 | 2.05 | I = 10 mA | |||||||
| Broadcom | AV02-0940EN | ||||||||
| 6N137, HCNW137, | HCNW2601, HCNW2611, | HCPL-0600, | HCPL-0601, HCPL- | ||||||
| 0611, HCPL-0630, | HCPL-0631, HCPL-0661, | HCPL-2601, | HCPL-2611, HCPL- | ||||||
| 2630, HCPL-2631, | HCPL-4661 Data Sheet | High CMR, High Speed TTL | Compatible | Optocouplers | |||||
| Widebody | 3 | — | — | I = 100 µA, T = 25°C | |||||
| Input Diode | V / | 8-Pin DIP, SO-8 | — | –1.6 | — | mV/°C | I = 10 mA | 7 | b |
| Temperature | T A | Widebody | — | –1.9 | — | ||||
| Input Capacitance | C | 8-Pin DIP, SO-8 | — | 60 | — | pF | f = 1 MHz, V = 0V | b | |
| Widebody | — | 70 | — E | E CC | |||||
| Broadcom | AV02-0940EN | ||||||||
| 6N137, HCNW137, HCNW2601, | HCNW2611, HCPL-0600, | HCPL-0601, | HCPL- | ||||||
| 0611, HCPL-0630, HCPL-0631, | HCPL-0661, HCPL-2601, | HCPL-2611, | HCPL- | ||||||
| 2630, HCPL-2631, HCPL-4661 Data | Sheet | High | CMR, High Speed TTL | Compatible | Optocouplers |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 型号 | Compliant | Compliant2 | 封装 | Mount | Gull | Wing | 包装 | 额定值 | 5-5 | 数量 |
|---|---|---|---|---|---|---|---|---|---|---|
| HCPL-xxxx | is UL Recognized | with | 3750 V | for 1 minute | per | UL1577. | ||||
| HCNWxxxx | is UL | Recognized with | 5000 V | for 1 minute | per | UL1577. | ||||
| Part | RoHS | Non-RoHS | Surface | Tape & | Minute | EN 60747- | ||||
| HCPL-2601 | -000E | No option | 300mil | 50 per tube | ||||||
| HCPL-2611 | -000E | No option | 300mil | 50 per tube | ||||||
| HCPL-2630 | -000E | No option | 300mil | 50 per tube | ||||||
| Broadcom | AV02-0940EN | |||||||||
| Part | RoHS | Non-RoHS | Surface | Tape & | Minute | EN 60747- | ||||
| HCPL-2631 | -000E | No option | 300mil | 50 per tube | ||||||
| HCPL-0600 | -000E | No option | SO-8 | X | 100 per tube | |||||
| HCPL-0630 | -000E | No option | SO-8 | X | 100 per tube | |||||
| HCNW137 | -000E | No option | 400 mil | X | X | 42 per tube | ||||
| Broadcom | AV02-0940EN |
