品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。

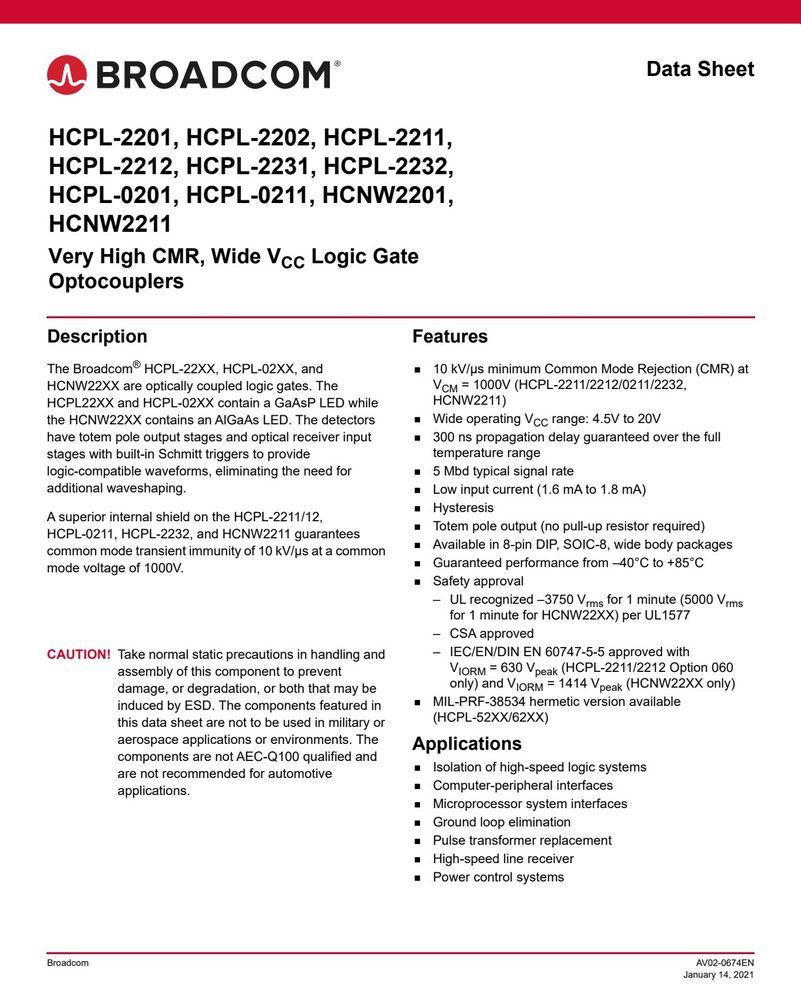

产品应用与封装尺寸

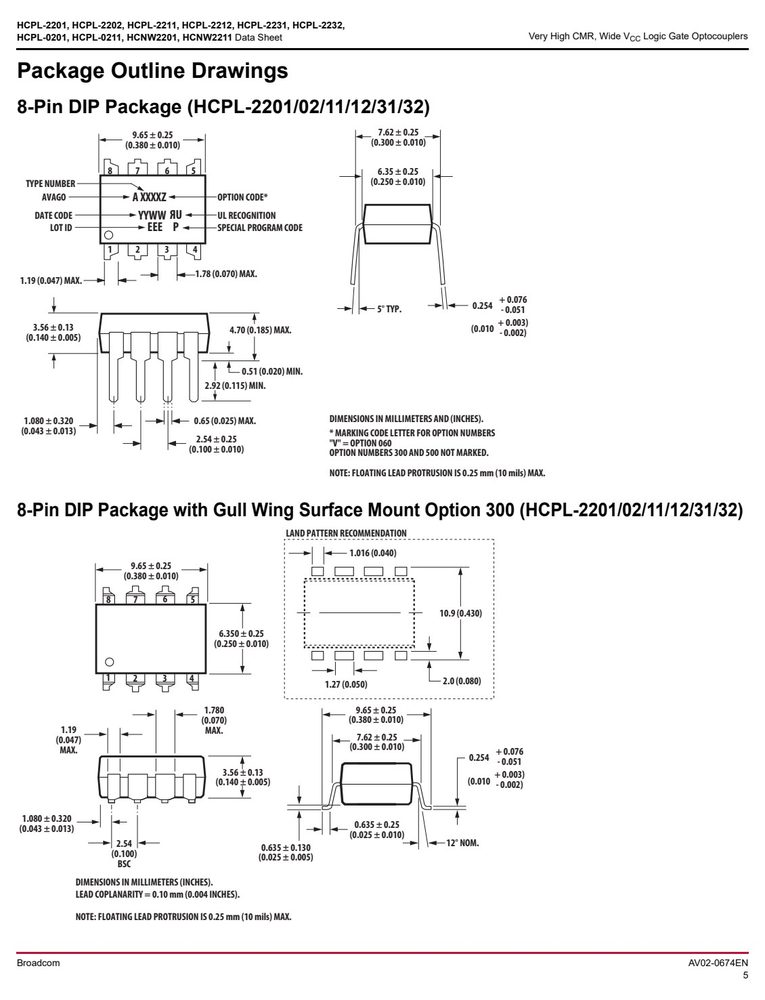

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | GND | |
| 6 | NC | |
| 7 | V | |
| 8 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1
- 电源电压 VCC
- HCNW2211 Data
- 工作温度 TA
- 85
产品特点 Features
- The Broadcom HCPL-22XX, HCPL-02XX, and
- HCNW22XX are optically coupled logic gates. The
- A superior internal shield on the HCPL-2211/12,
- HCPL-0211, HCPL-2232, and HCNW2211 guarantees common mode transient immunity of 10 kV/µs at a common mode voltage of 1000V.
- 10 kV/µs minimum Common Mode Rejection (CMR) at
- V = 1000V (HCPL-2211/2212/0211/2232,
- HCNW2211)
- Wide operating V CC range: 4.5V to 20V
- 300 ns propagation delay guaranteed over the full temperature range
- 5 Mbd typical signal rate
- Low input current (1.6 mA to 1.8 mA)
- Hysteresis
- Totem pole output (no pull-up resistor required)
- Available in 8-pin DIP, SOIC-8, wide body packages
- Guaranteed performance from –40°C to +85°C
- HCPL-2201, HCPL-2202, HCPL-2211, HCPL-2212, HCPL-2231, HCPL-2232,
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | –55 | 125 | °C | |
| Operating Temperature | T | –40 | 85 | °C | |
| Average Forward Input Current | I | — | 10 | mA | a |
| Peak Transient Input Current | I | A | a | ||
| (≤1 µs Pulse Width, 300 pps) | — | 1.0 | |||
| (≤200 µs Pulse Width, <1% Duty Cycle) | HCNW22XX | — | 40 | mA | |
| HCNW22XX | — | 3 | |||
| Average Output Current | I | — | 25 | mA | a |
| Supply Voltage | V | 0 | 20 | V | |
| Output Voltage | V | –0.5 | 20 | V | a |
| Total Package Power Dissipation | P | — | 210 | mW | b |
| HCPL-223X | — | 294 | |||
| Output Power Dissipation | P | See Figure 7. | a | ||
| Lead Solder Temperature | 260°C for | 10s, 1.6 mm | below seating | plane | |
| HCNW22XX | 260°C | for 10s, up to | seating plane | ||
| Solder Reflow Temperature Profile | See | Package Outline | Drawings. |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 值2 | 值3 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| 8-Pin DIP | Widebody | |||||
| (300 Mil) | SO-8 | (400 Mil) | ||||
| Minimum External Air Gap | L(101) | 7.1 | 4.9 | 9.6 | mm Measured | from input terminals to output |
| (External Clearance) | terminals, | shortest distance through air. | ||||
| Minimum External Tracking | L(102) | 7.4 | 4.8 | 10.0 | mm Measured | from input terminals to output |
| (External Creepage) | terminals, | shortest distance path along | ||||
| Minimum Internal Plastic Gap | 0.08 | 0.08 | 1.0 | mm Through | insulation distance, conductor | |
| (Internal Clearance) | to | conductor, usually the direct distance | ||||
| between | the photoemitter and | |||||
| photodetector | inside the optocoupler | |||||
| Minimum Internal Tracking | NA | NA | 4.0 | mm Measured | from input terminals to output | |
| (Internal Creepage) | terminals, | along internal cavity. | ||||
| Tracking Resistance | CTI | 200 | 200 | 200 | V DIN IEC | 112/VDE 0303 Part 1. |
| Isolation Group | IIIa | IIIa | IIIa | Material Table | Group (DIN VDE 0110, 1/89, 1). | |
| NOTE: Option 300 - | surface mount | classification is | Class A in | accordance | with CECC 00802. | |
| Broadcom | AV02-0674EN |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 | 备注 | 图号 |
|---|---|---|---|---|---|---|---|---|
| –40°C ≤ T ≤ 85°C, 4.5V ≤ V | ≤ 20V, 1.6 mA ≤ | I | ≤ 5 mA, | 0V ≤ V | ≤ 0.8V, | unless otherwise | specified. | |
| Logic Low Output Voltage | V | — | — | 0.5 | V I | = 6.4 mA (4 TTL Loads) | a, b | 1 |
| Logic High Output Voltage | V | 2.4 | c | — | V I | = –2.6 mA | d, b | 1 |
| OUT CC | 2.7 | — | — | I | = –0.4 mA | |||
| Output Leakage Current | I | — | — | 100 | µA V | = 5.5V; I = 5 mA | 1 | |
| OHH | O | F | ||||||
| — | — | 500 | V | = 20V; I = 5 mA | ||||
| Logic Low Supply Current | I | — | 3.7 | 6.0 | mA V | = 5.5V; V = 0V, I = | Open | |
| CCL | CC | F O | ||||||
| — | 4.3 | 7.0 | V CC | = 20V; V = 0V, I = F O | Open | |||
| HCPL-223X | — | 7.4 | 12.0 | V CC | = 5.5V; V = 0V, I = F O | Open | ||
| — | 8.6 | 14.0 | V CC | = 20V; V = 0V, I = F O | Open | |||
| Logic High Supply Current | I | — | 2.4 | 4.0 | mA V | = 5.5V; I = 5 mA, I = | Open | |
| CCH | CC | F O | ||||||
| — | 2.7 | 5.0 | V CC | = 20V; I = 5 mA, I = F O | Open | |||
| HCPL-223X | — | 4.8 | 8.0 | V CC | = 5.5V; I = 5 mA, I = F O | Open | ||
| — | 5.4 | 10.0 | V CC | = 20V; I = 5 mA, I = F O | Open | |||
| Logic Low Short Circuit | I | 15 | — | — | mA V | = V = 5.5V; V = 0V | 1, 3 | |
| OSL | O | CC F | ||||||
| 20 | — | — | V O | = V = 20V; V = 0V CC F | ||||
| Logic High Short Circuit | I | — | — | –10 | mA V | = 5.5V; V = GND; I = | 5 mA | 1, 3 |
| OSH | CC | O F | ||||||
| — | — | –20 | V CC | = 20V; V = GND; I = O F | 5 mA | |||
| Input Forward Voltage | V | — | 1.5 | 1.7 | V T | = 25°C; I = 5 mA | e | 1 |
| F | A | F | ||||||
| — | — | 1.85 | I | = 5 mA | ||||
| HCNW22XX | — | 1.5 | 1.82 | T | = 25°C; I = 5 mA | |||
| — | — | 1.95 | I | = 5 mA | ||||
| HCNW22XX | 3 | — | — | I | = 100 µA | |||
| Input Diode Temperature | V /T | — | –1.7 | — | mV/°C I | = 5 mA | ||
| HCNW22XX | — | –1.4 | — | I | = 5 mA | |||
| Input Capacitance | C | — | 60 | — | pF f = | 1 MHz, V = 0V | a, e | |
| HCNW22XX | — | 70 | — | f = | 1 MHz, V = 0V | |||
| e. For single devices, input | capacitance is measured | between pin | 2 and pin | 3. | ||||
| Broadcom | AV02-0674EN | |||||||
| HCPL-0201, HCPL-0211, HCNW2201, | HCNW2211 Data | Sheet | Very High CMR, Wide V CC | Logic Gate | Optocouplers | |||
| HCPL-0201, HCPL-0211, HCNW2201, HCNW2211 | Data Sheet | Very | High CMR, Wide V CC Logic | Gate | Optocouplers | |||
| Input-Output Momentary | V | 3750 | — | — | V | RH < 50%, t = 1 min. | b, c |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 型号 | Compliant | Compliant2 | 封装 | Mount | Wing | 包装 | 额定值 | EN | 60747-5-5 | 数量 |
|---|---|---|---|---|---|---|---|---|---|---|
| HCNW2201 | and HCNW2211 | are UL | Recognized | with 5000 | V for 1 | minute per | UL1577. | |||
| Part | RoHS | Non RoHS | Surface | Gull | Tape & | 1 Minute | IEC/EN/DIN | |||
| HCPL-2201 | -000E | No option | 300 mil | 50 per tube | ||||||
| HCPL-2202 | -300E | #300 | DIP-8 | X | X | 50 per tube | ||||
| HCPL-2211 | -500E | #500 | X | X | X | 1000 per reel | ||||
| HCPL-2231 | -000E | No option | 300 mil | 50 per tube | ||||||
| HCPL-2232 | -300E | #300 | DIP-8 | X | X | 50 per tube | ||||
| HCPL-0201 | -000E | No option | SO-8 | X | 100 per tube | |||||
| HCPL-0211 | -500E | #500 | X | X | 1500 per reel | |||||
| HCNW2201 | -000E | No option | 400 mil | X | X | 42 per tube | ||||
| HCNW2211 | -300E | #300 | Widebody | X | X | X | X | 42 per tube | ||
| Broadcom | AV02-0674EN | |||||||||
| Broadcom | AV02-0674EN |
