品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。
产品应用与封装尺寸

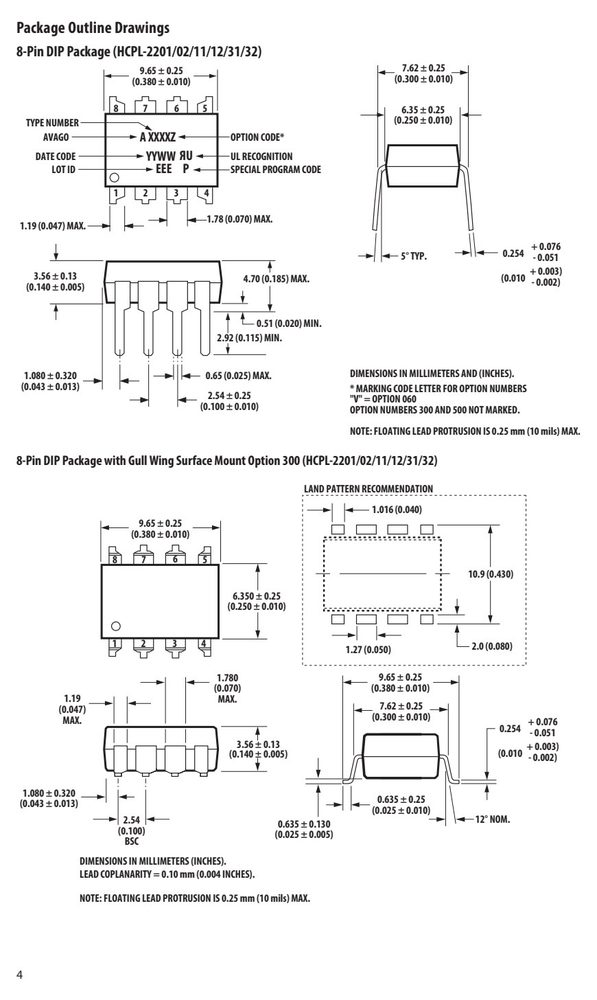

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 4 | SHIELD | |
| 5 | GND | |
| 6 | NC | |
| 7 | V | |
| 8 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- 20
- 工作温度 TA
- 85

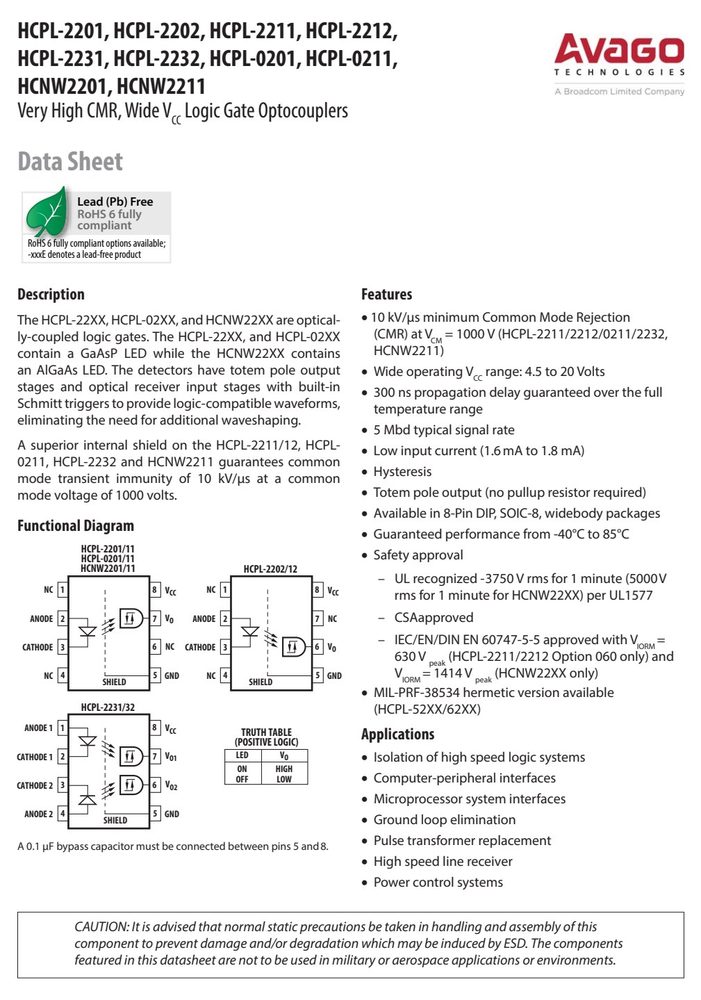

产品特点 Features
- 300 ns propagation delay guaranteed over the full
- Schmitt triggers to provide logic-compatible waveforms, temperature range eliminat ing the need for additional waveshaping.
- 5 Mbd typical signal rate
- A superior internal shield on the HCPL-2211/12, HCPL-
- Low input current (1.6 mA to 1.8 mA)
- 0211, HCPL-2232 and HCNW2211 guarantees common
- Hysteresis mode transient immunity of 10 kV/μs at a common mode voltage of 1000 volts. Totem pole output (no pullup resistor required)
- Available in 8-Pin DIP, SOIC-8, widebody packages
- Functional Diagram
- Guaranteed performance from -40°C to 85°C
- The electrical and switching characteristics of the HCPL-22XX, HCPL-02XX and HCNW22XX are guaranteed from
- -40°C to +85°C and a V from 4.5 volts to 20 volts. Low I and wide V range allow compati bil ity with TTL, LSTTL,
- CC F CC and CMOS logic and result in lower power consump tion compared to other high speed couplers. Logic signals are transmitted with a typical propagation delay of 150 ns.
- Selection Guide
- Small- Widebody
- Minimum CMR Input 8-Pin DIP (300 Mil) Outline SO-8 (400 Mil) Hermetic
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 85 | °C | |
| Average Forward Input Current | I | 10 | mA | 1 | |
| (≤ 1 μs Pulse Width, 300 pps) | I | 1.0 | A | 1 | |
| HCNW22XX HCNW22XX | 40 3 | mA | |||
| Average Output Current | I | 25 | mA | 1 | |
| Supply Voltage | V | 0 | 20 | V | |
| Output Voltage | V | -0.5 | 20 | V | 1 |
| Total Package Power Dissipation | P HCPL-223X | 210 294 | mW | 2 | |
| Output Power Dissipation | P | See Figure | 7 | 1 | |
| Lead Solder Temperature | 260°C for | 10 sec., | |||
| (Through Hole Parts Only) | 1.6 mm | below seating | plane | ||
| HCNW22XX | 260°C for | 10 sec., up to | seating plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 值2 | 值3 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| 8-Pin DIP | Widebody | |||||
| (300 Mil) | SO-8 | (400 Mil) | ||||
| Minimum External | L(101) | 7.1 | 4.9 | 9.6 | mm | Measured from input terminals |
| Air Gap (External | to output terminals, shortest | |||||
| Clearance) | distance through air. | |||||
| Minimum External | L(102) | 7.4 | 4.8 | 10.0 | mm | Measured from input terminals |
| Tracking (External | to output terminals, shortest | |||||
| Creepage) | distance path along body. | |||||
| Minimum Internal | 0.08 | 0.08 | 1.0 | mm | Through insulation distance, | |
| Plastic Gap | conductor to conductor, usually | |||||
| (Internal Clearance) | the direct distance between the | |||||
| Minimum Internal | NA | NA | 4.0 | mm | Measured from input terminals | |
| Tracking (Internal | to output terminals, along | |||||
| Creepage) | internal cavity. | |||||
| Tracking Resistance | CTI | 200 | 200 | 200 | Volts | DIN IEC 112/VDE 0303 Part 1 |
| Isolation Group | IIIa | IIIa | IIIa | Material Group | ||
| (DIN VDE 0110, 1/89, Table 1) | ||||||
| Option 300 - surface | mount classifi cation | is Class A in | accordance with | CECC 00802. |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 型号 | Compliant | Compliant2 | 封装 | Mount | Wing | 包装 | 额定值 | 60747-5-5 | 数量 |
|---|---|---|---|---|---|---|---|---|---|
| HCNW2201 | and HCNW2211 | are UL | Recognized | with 5000 | Vrms for | 1 minute | per UL1577. | ||
| Part | RoHS | Non RoHS | Surface | Gull | Tape & | Minute | IEC/EN/DIN EN | ||
| HCPL-2202 | -500E | #500 | 300mil | X | X | X | 1000 per reel | ||
| HCPL-2211 | -060E | #060 | DIP-8 | X | 50 per tube | ||||
| HCPL-0201 | -500E | #500 | X | X | 1500 per reel | ||||
| HCPL-0211 | -060E | #060 | X | X | 100 per tube | ||||
| with | IEC/EN/DIN EN | 60747-5-5 | Safety Approval | in RoHS | compliant. |
