品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。

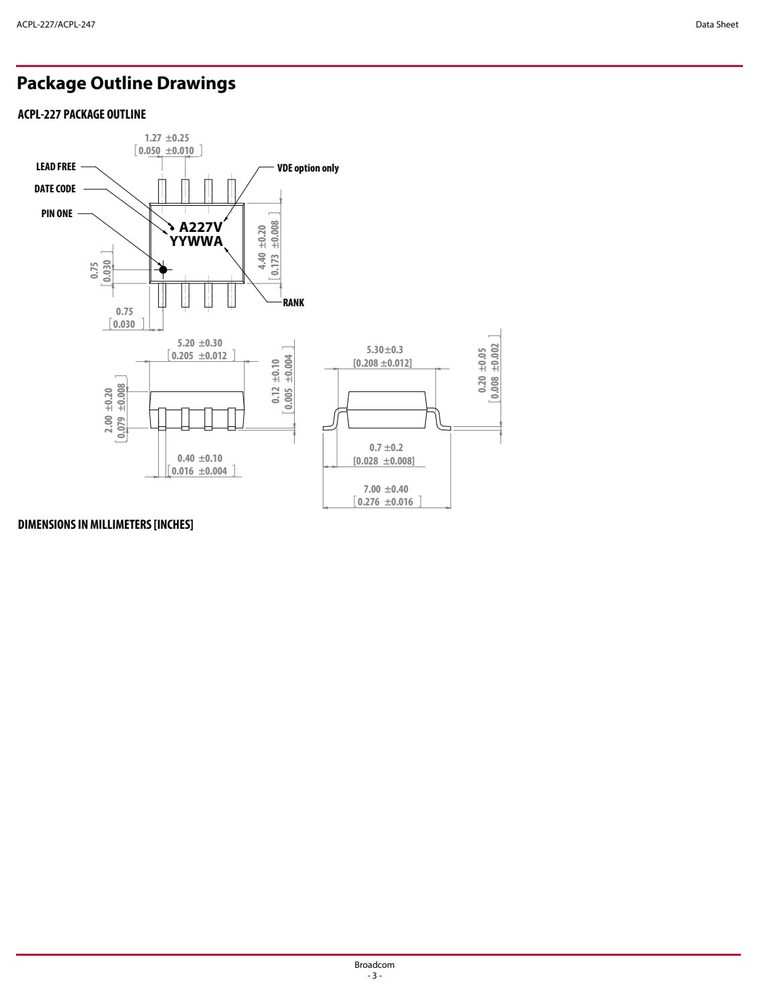

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- Figure 6
- 电流传输比 CTR
- 600
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 80
- 隔离电压 VISO
- DC500V,
- 工作温度 TA
- –55~110
产品特点 Features
- ACPL-227/ACPL-247 Data Sheet
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | ACPL-227 | ACPL-247 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | –55~125 | °C | ||
| Operating Temperature | T | –55~110 | °C | ||
| Average Forward Current | I | 50 | mA | ||
| Pulse Forward Current | I | 1 | A | ||
| LED Power Dissipation (1 channel) | P | 65 | mW | ||
| Collector Current | I | 50 | mA | ||
| Collector-Emitter Voltage | V | 80 | V | ||
| Emitter-Collector Voltage | V | 7 | V | ||
| Isolation Voltage (AC for 1 minute, R.H. | 40%~60%) V | 3750 | V | 1 minute | |
| Collector Power Dissipation (1 channel) | P | 150 | 100 | mW | |
| Total Power Dissipation | P | 200 | 170 | mW | |
| Lead Solder Temperature | - 5 - | 260°C for 10 seconds |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| packaged | in | a | 16-pin | SO | 封装 | | SO2 | 封装2 |
|---|---|---|---|---|---|---|---|---|
| packaged | in | an | 8-pin | SO | package. | (V | = 3750V ) | |
| Likewise, | the | ACPL-247 | is a | DC-input quad-channel | half-pitch | |||
| | Non-saturated response time | |||||||
| phototransistor | optocoupler | that contains four | light-emitting | |||||
| (t : 2 | μs (typ) at V = 10V, I = 2 mA, R = 100) | |||||||
| diodes | optically | coupled | to four separate | phototransistors. It is | r | CC C L | ||
| For both | devices, | the | input-output isolation voltage | is rated at | CMR | 10 kV/μs (typical) | ||
| CTR is 50 | percent | at | input | current of 5 mA. | — | cUL | ||
| — | IEC/EN/DIN EN 60747-5-5 | |||||||

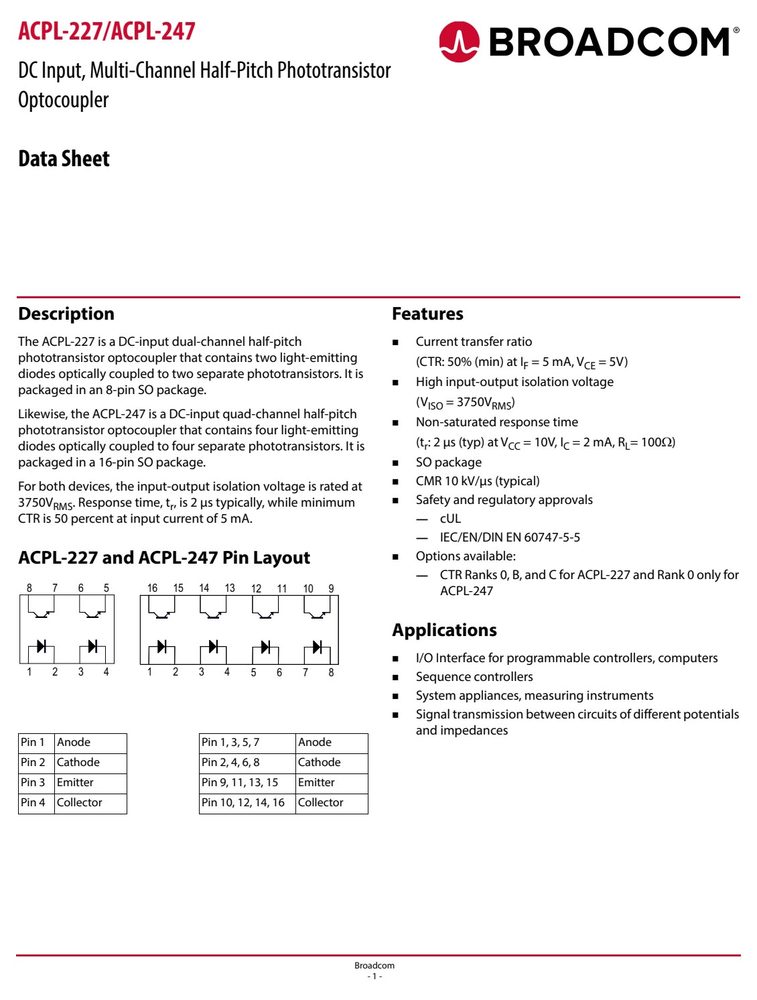

| ACPL-227 | and | ACPL-247 Pin Layout | | Options | available: | |||
| — | CTR Ranks 0, B, and C for ACPL-227 and Rank 0 only for | |||||||
| 8 7 | 6 | 5 | 16 | 15 14 13 12 11 | 10 9 | ACPL-247 |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 | 备注 |
|---|---|---|---|---|---|---|---|
| Over recommended ambient | temperature at | 25°C unless | otherwise | specified. | |||
| Forward Voltage | V | — | 1.2 | 1.4 | V | I = 20 mA | Figure 6 |
| Terminal Capacitance | C | — | 30 | — | pF | V = 0, f = 1 MHz | |
| Collector Dark Current | I CEO | — | — | 100 | nA | V = 48V, I = 0 mA CE F | Figure 12 |
| Collector-Emitter Breakdown | Voltage BV CEO | 80 | — | — | V | I = 0.5 mA, I = 0 mA C F | |
| Emitter-Collector Breakdown | Voltage BV ECO | 7 | — | — | V | I = 100 μA, I = 0 mA E F | |
| Current Transfer Ratio | CTR | 50 | — | 600 | % | I = 5 mA, V = 5V F CE | CTR = (I / I ) × 100% C F |
| Current Transfer Ratio | CTR | 100 | — | 600 | % | I = 5 mA, V = 5V F CE | CTR = (I / I ) × 100% C F |
| Saturated CTR | CTR (sat) | — | 60 | — | % | I = 1 mA, V = 0.4V F CE | |
| Collector-Emitter Saturation | Voltage V sat) CE( | — | — | 0.4 | V | I = ±8 mA, I = 2.4 mA F C | Figure 14 |
| Isolation Resistance | R iso | 5 × 1010 | 1 × 1011 | — | Ω | DC500V, R.H. 40%~60% | |
| Floating Capacitance | C | — | 0.6 | 1 | pF | V = 0, f = 1 MHz | |
| Cut-off Frequency (–3 dB) | F C | — | 80 | — | kHz | V = 5V, I = 2 mA, CC C R = 100Ω | Figure 2, Figure 19 |
| Response Time (Rise) | t r | — | 2 | — | μs | V = 10V, I = 2 mA, CC C R = 100Ω | Figure 1 |
| Response Time (Fall) | t | — | 3 | — | μs | L | |
| Turn-on Time | t | — | 3 | — | μs | ||
| Turn-off Time | t | — | 3 | — | μs | ||
| Turn-ON Time | t ON | — | 2 | — | μs | V = 5V, I = 16 mA, CC F R = 1.9 kΩ | Figure 1, Figure 17 |
| Storage Time | T | — | 25 | — | μs | L | |
| Turn-OFF Time | t | — | 40 | — | μs | ||
| Common Mode Rejection Voltage | CMR | — | 10 | — | kV/μs | T = 25°C, R = 470Ω, | Figure 20 |
| V = 1.5 kV(peak), | |||||||
| I = 0 mA, V = 9V, V = 100 mV |
订货信息与供货形式
| 型号 | 型号2 | of | Surface |
|---|---|---|---|
| Part | Number | of | Surface |
| Number | Channels | Mount |
应用领域 Applications
