Name: LITEON LTV-063L
Brand: LITEON
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

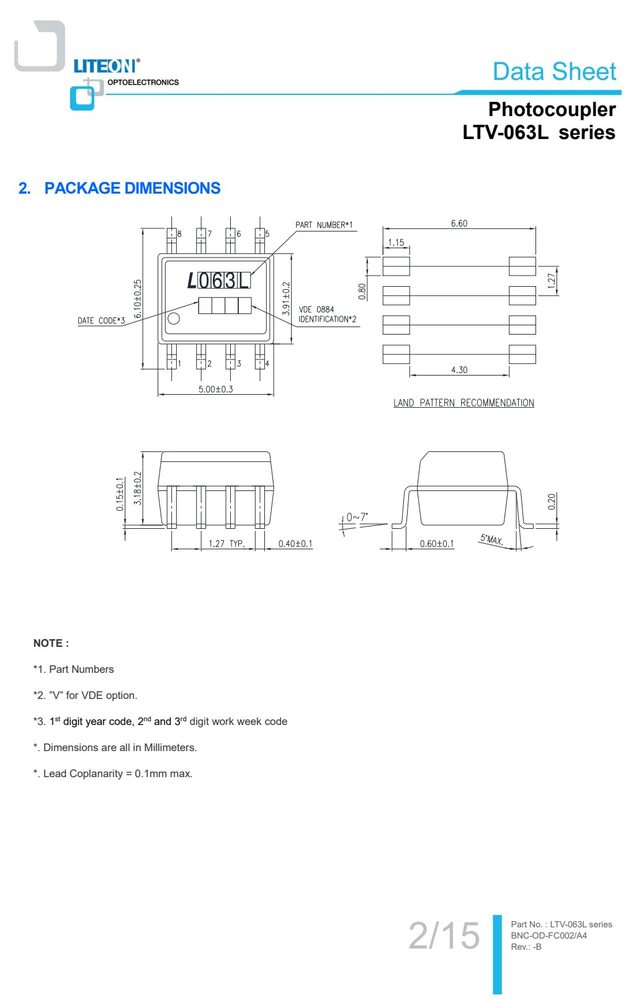

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 2

产品特点 Features

Ω Small outline SO8 package
Ω 3.3V/5V Dual Supply Voltage.
Ω Dual channel output
Ω Lower power consumption
Ω High speed: 10 Mbd typical
Ω Low input current capability: 5mA
Ω LVTTL/LVCMOS compatible
Ω Guaranteed performance from temperature -40 °C to +85 °C
Ω 10KV/μs minimum Common Mode Rejection (CMR) at V = 1000V
Photocoupler
LTV-063L series
3. TAPING DIMENSIONS
3.1 LTV-063L

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	额定值	单位	备注
Average Forward Input Current	I	15	mA	2
	I	1.0	A	2
Power Dissipation	P	40	mW
Output Collector Current	I	50	mA	2
Output Output Collector Voltage	V	7	V	2
Output Collector Power Dissipation	P	60	mW	2

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	额定值	单位
Supply Voltage	V	7	V
Operating Temperature	T	-40 ~ +85	°C
Storage Temperature	T	-55 ~ +125	°C

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	测试条件	图号	备注
Input Forward Voltage	V F	—	1.38	1.70	V	I =10mA, T =25°C F A	7	2
	ΔV /ΔT	—	-1.5	—	mV/°C	I =10mA		2
						V =3.3V, V = 0.6V
Input Threshold Current	I	—	2	5	mA		4
						I (sinking) = 13mA
Input Capacitance	C IN	—	34	—	pF	V =0; f=1MH F Z		2
						V = 3.3V, I = 5mA,
Logic low output voltage	V	—	0.24	0.6	V		5
						I (sinking) = 13mA
						V = 3.3V, V = 3.3V,
Logic high output current	I	—	1.3	100	μA	I = 250μA	3	2
Logic low supply current	I CCL	—	6.4	10	mA	V = 3.3V, I = 10mA CC F
Logic high supply current	I CCH	—	6.8	10	mA	V = 3.3V, I = 0mA CC F
						5/15	Pa rt No . : LT	V-06 3L s eries
							BNC-OD-FC002/A4
							LTV-063L	series
Input Forward Voltage	V F	—	1.38	1.70	V	I =10mA, T =25°C F A	7	2
	ΔV /ΔT	—	-1.5	—	mV/°C	I =10mA		2
						V =5.5V, V = 0.6V
Input Threshold Current	I	—	2.1	5	mA		4
						I (sinking) = 13mA
Input Capacitance	C IN	—	34	—	pF	V =0; f=1MH F Z		2
						V = 5.5V, I = 5mA
Logic low output voltage	V	—	0.09	0.6	V		5
						I (sinking) = 13mA
						V = 5.5V, V = 5.5V,
Logic high output current	I	—	1.12	100	μA	I = 250μA	3	2
Logic low supply current	I CCL	—	7.2	10	mA	V = 5.5V, I = 10mA CC F
Logic high supply current	I CCH	—	7.6	10	mA	V = 5.5V, I = 0mA CC F
						6/15	Pa rt No . : LT	V-06 3L s eries
							BNC-OD-FC002/A4
						LTV-063L		series
			t	25	50	90	1,8	2, 4
			t	25	44	75	1,8	2, 5
Pulse Width Distortion					6		9
	R = 350Ω,	C = 15pF				ns
Propagation Delay Skew			t			40		10
Output Rise Time (10 to 90%)			t		11			2
Output Fall Time (90 to 10%)			t		2.3			2
		A		CC		F
			t	25	50	90	1,8	2, 4
			t	25	40	75	1,8	2, 5
Pulse Width Distortion					10		9
	R = 350Ω,	C = 15pF				ns
Propagation Delay Skew			t			40		10
Output Rise Time (10 to 90%)			t		11			2
Output Fall Time (90 to 10%)			t		2.3			2
						7/15 Pa rt No	. : LT V-06 3L	s eries
							BNC-OD-FC002/A4
						LTV-063L		series
			\|CM \|			KV/μs	2	6
			\|CM \|			KV/μs	2	7
						8/15 Pa rt No	. : LT V-06 3L	s eries
							BNC-OD-FC002/A4

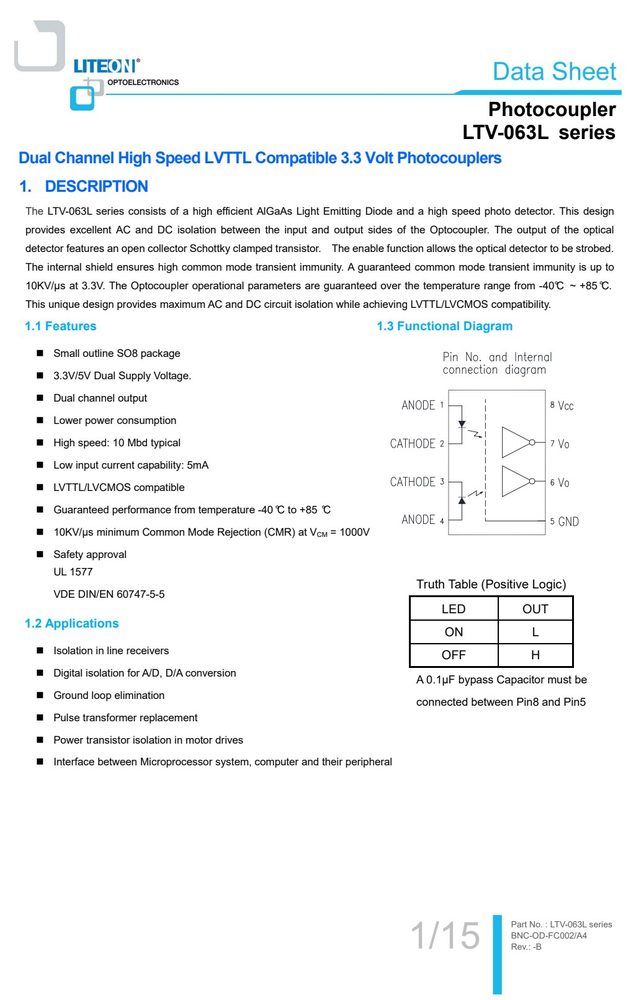

应用领域 Applications

Ω Isolation in line receiversOFF HA 0.1μF bypass Capacitor must beΩ Pulse transformer replacement1/15 Pa rt No . : LT V-06 3L s eriesBNC-OD-FC002/A4Rev.: -BPhotocouplerLTV-063L series3. TAPING DIMENSIONS3.1 LTV-063L4. RATING AND CHARACTERISTICS
