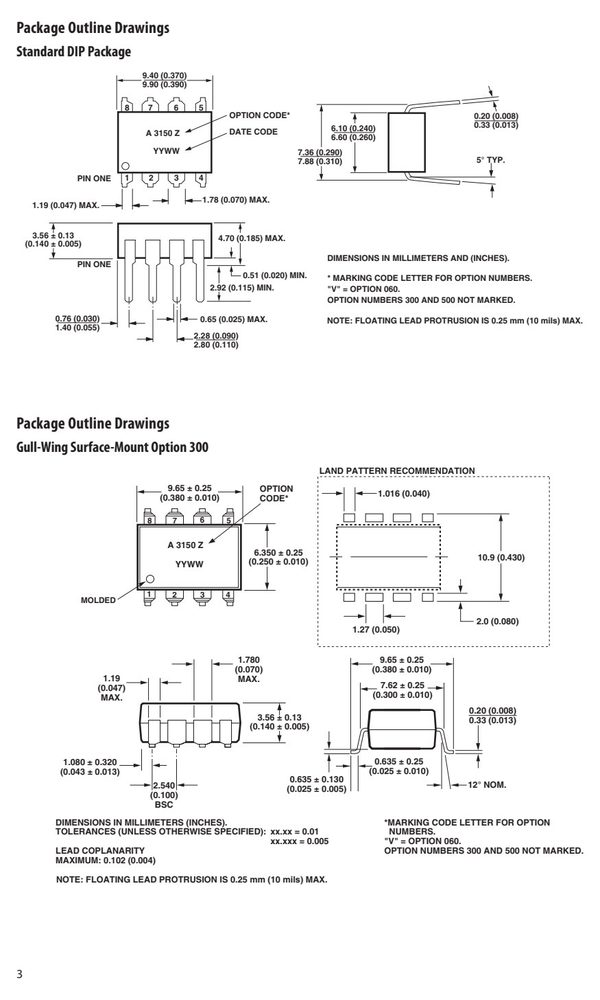

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | VEE | |
| 6 | VO | |
| 7 | VO | |
| 8 | VCC | |
| 9 | VEE | |
| 10 | VO | |
| 11 | V | |
| 12 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- mA 16
- 电源电压 VCC
- 35
- 工作温度 TA
- 100
产品特点 Features
- The HCPL-315X consists of an LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and
- MOSFETs used in motor control inverter applications.
- kΩ 0.6A maximum peak output current
- kΩ 0.5 A minimum peak output current
- kΩ 15 kV/μs minimum Common Mode Rejection (CMR) at V = 1500 V
- kΩ 1.0V maximum low level output voltage (V ) eliminates need for negative gate drive
- kΩ I = 5 mA maximum supply current
- kΩ Under Voltage Lock-Out protection (UVLO) with hysteresis
- kΩ Wide operating V range: 15 to 30 volts mode transients. For example, the recommended ap- plication circuit (Figure 25), can achieve 15 kV/μs CMR while minimizing component complexity.
- The HCPL-3150/315J contains an under voltage lockout
- Techniques to keep the LED in the proper state are dis- cussed in the next two sections.
- CMR with the LED On (CMR )
- 15 kV/μs CMR.
- ELCYC Qg = 100 nC
- 6 Qg = 250 nC
- Qg = 500 nC
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 100 | °C | |
| Average Input Current | I | 25 | mA | 1, 16 | |
| Peak Transient Input Current | I | 1.0 | A | ||
| “High” Peak Output Current | I | 0.6 | A | 2, 16 | |
| “Low” Peak Output Current | I | 0.6 | A | 2, 16 | |
| Supply Voltage | (V - V ) | 0 | 35 | Volts | |
| Output Voltage | V | 0 | V | Volts | |
| Output Power Dissipation | P | 250 | mW | 3, 16 | |
| Total Power Dissipation | P | 295 | mW | 4, 16 | |
| Lead Solder Temperature | 260°C for 10 sec., | 1.6 mm below | seating plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 说明 | 符号 | HCPL-3150#060 | HCPL-315J | 单位 |
|---|---|---|---|---|
| Input to Output Test Voltage, | Method b* | |||
| V x 1.875 = V , 100% | Production | |||
| Test with t = 1 sec, | V | 1181 | 2306 | Vpeak |
| Input to Output Test Voltage, | Method a* | |||
| V x 1.6 = V , Type and | Sample | |||
| Test, t = 10 sec, | V | 945 | 1968 | Vpeak |
| Highest Allowable Overvoltage* | V | 6000 | 8000 | Vpeak |
| (Transient Overvoltage t | = 60 sec) |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| A | F(ON) | F(OFF) | CC | |||||
| V = Ground, each | channel) unless | otherwise | specified. | |||||
| High Level | I OH | 0.1 | 0.4 | A | V = (V - 4 V) 2, 3, O CC | 5 | ||
| 0.5 | V = (V - 15 V) | 17 | 2 | |||||
| Low Level | I OL | 0.1 | 0.6 | A | V = (V + 2.5 V) O EE | 5, 6, | 5 | |
| 0.5 | V = (V + 15 V) | 18 | 2 | |||||
| High Level Output | V | (V - 4) | (V - 3) | V | I = -100 mA | 1, 3, | 6, 7 | |
| Voltage | OH | CC | CC | O | 19 | |||
| Low Level Output Voltage | V | 0.4 | 1.0 | V | I = 100 mA | 4, 6, 20 | ||
| High Level | I | 2.5 | 5.0 | mA | Output Open, 7, 8 | 16 | ||
| Supply Current | I = 7 to 16 mA | |||||||
| Low Level | I | 2.7 | 5.0 | mA | Output Open, | |||
| Supply Current | V = -3.0 to +0.8 V | |||||||
| Threshold Input | I | 2.2 | 5.0 | mA | HCPL-3150 I = 0 | mA, 9, 15, | ||
| Current Low to High | 2.6 | 6.4 | HCPL-315J V > 5 | V 21 | ||||
| Threshold Input | V | 0.8 | V | |||||
| Input Forward | Voltage V | 1.2 | 1.5 | 1.8 | V | HCPL-3150 I = 10 | mA 16 | |
| Temperature | ΔV /ΔT | -1.6 | mV/°C | I = 10 mA | ||||
| Breakdown Voltage | 3 | HCPL-315J I = 10 | μA | |||||
| Input Capacitance | C | 70 | pF | f = 1 MHz, V = 0 V | ||||
| UVLO Threshold | V | 11.0 | 12.3 | 13.5 | V | V > 5 V, | 22, | |
| V | 9.5 | 10.7 | 12.0 | I = 10 mA | 36 | |||
| UVLO Hysteresis | UVLO | 1.6 | V |
