Name: AVAGO ACPL-T350-560E
Brand: AVAGO
Availability: InStock

品牌说明

本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通混称。本页参数与规格书均取自该产品线原厂资料。

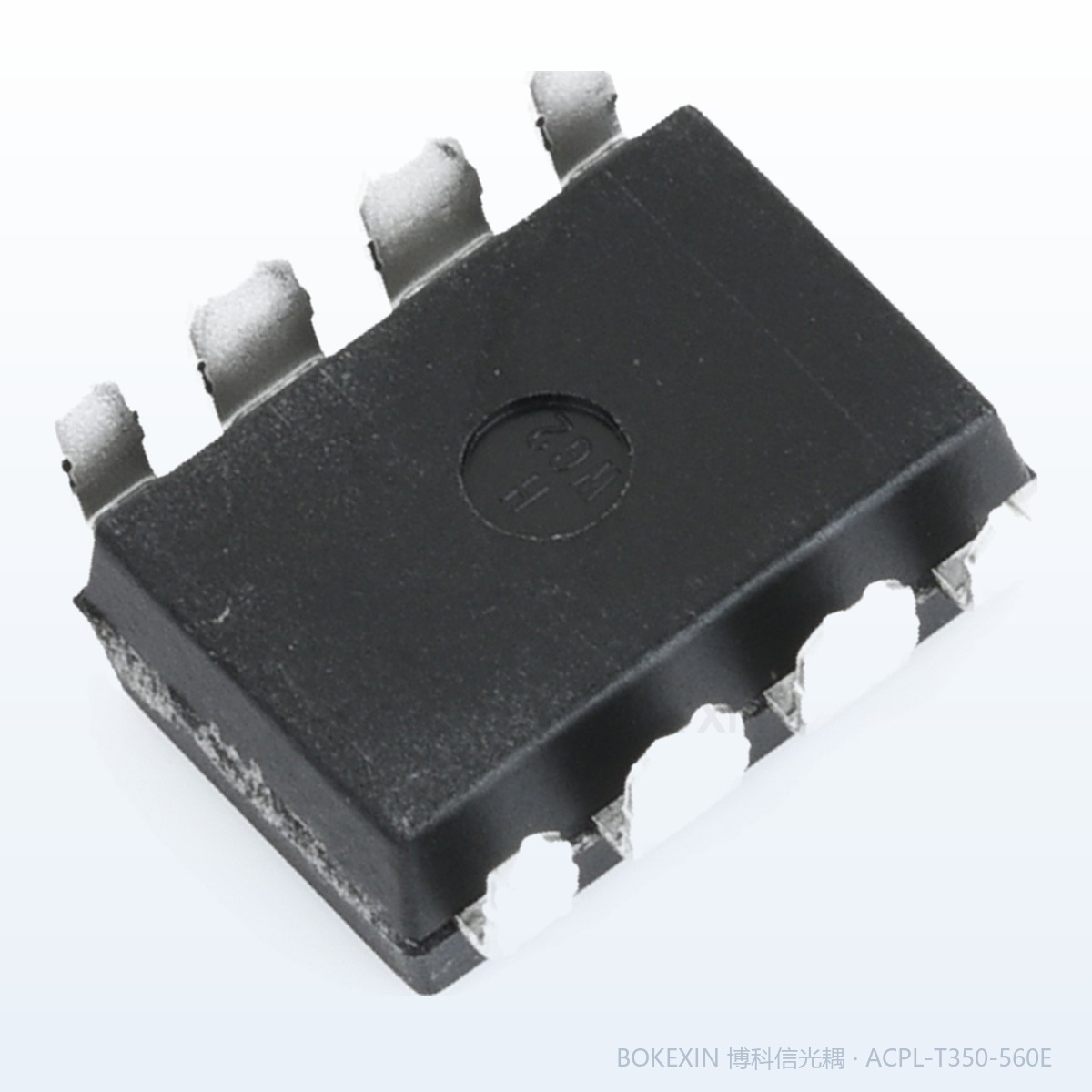

产品实拍图

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

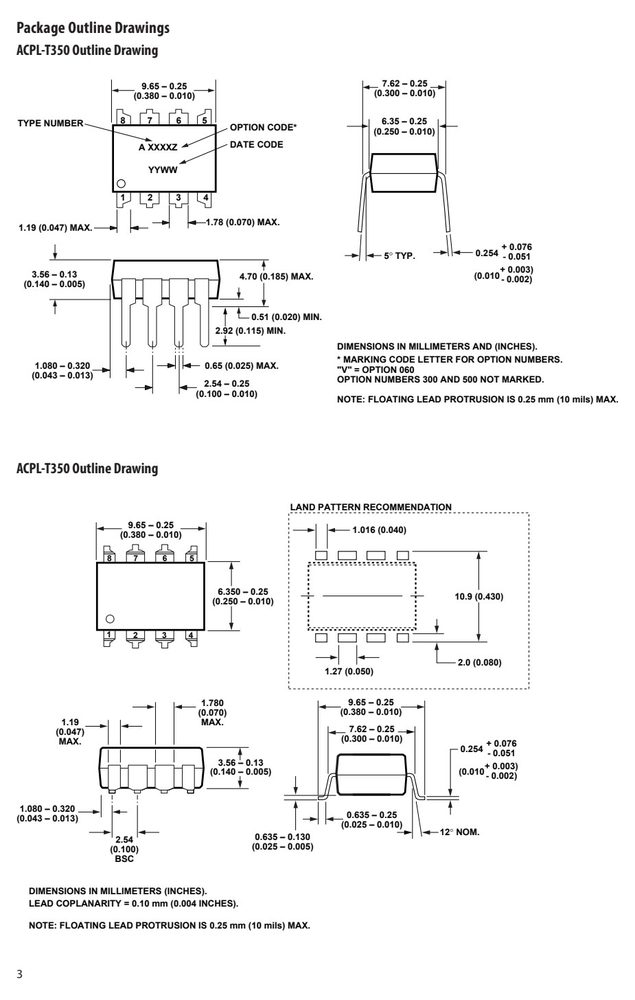

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
4	V
5	VEE
6	VO
7	VO
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

电源电压 VCC: 35
工作温度 TA: 100

产品特点 Features

The ACPL-T350 contains a GaAsP LED. The LED is optically  2.5A Absolute Maximum Peak Output Current coupled to an integrated circuit with a power output
 15 kV/μs minimum Common Mode Rejection (CMR) at stage. These optocouplers are ideally suited for driving
V = 1500 V power IGBTs and MOSFETs used in motor control inverter
 1.5 V maximum low level output voltage (V )

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	100	°C
Average Input Current	I		25	mA	1
Peak Transient Input Current	I		1.0	A
“High” Peak Output Current	I		2.5	A	2
“Low” Peak Output Current	I		2.5	A	2
Supply Voltage	V – V	0	35	V
Input Current (Rise/Fall	Time) t /t		500	ns
Output Voltage	V	0	V	V
Output Power Dissipation	P		250	mW	3
Total Power Dissipation	P		295	mW	4
Lead Solder Temperature	260°C for 10	sec., 1.6 mm below	seating plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

说明	符号	包装	060	单位
		ACPL-T350
Installation classifi cation per DIN VDE 0110/39,	Table 1
for rated mains voltage ≤ 150 V		I – IV
for rated mains voltage ≤ 300 V		I – IV
for rated mains voltage ≤ 450 V		I – III
Pollution Degree (DIN VDE 0110/39)		2
Input to Output Test Voltage, Method b*	V	1181		V
V x 1.875=V , 100% Production Test with	t =1 sec, Partial discharge < 5 pC
Input to Output Test Voltage, Method a*	V	1008		V
V x 1.6=V , Type and Sample Test, t =10	sec, Partial discharge < 5 pC
Highest Allowable Overvoltage (Transient	Overvoltage t = 60 sec) V ini IOTM	6000		V peak
Case Temperature	T	175		°C
Input Current	I	230		mA
Output Power	P	600		mW
Insulation Resistance at T , V = 500 V	R	>109		
			ACPL-T350	Option 060
detailed description of Method a and Method b partial	discharge test profi les.
Surface mount classifi cation is Class A in accordance	with CECC 00802. 600
	0	25 50	75 100	125 150 175
		T - CASE	TEMPERATURE	- C
Gap (Clearance)	through air.
Tracking (Creepage)	path along body.
Minimum Internal 0.08	mm Through insulation distance conductor	to	conductor,	usually the
Plastic Gap	straight line distance thickness between	the	emitter	and detector.
Tracking Resistance CTI > 175	V DIN IEC 112/VDE 0303 Part 1
Isolation Group IIIa	Material Group (DIN VDE 0110, 1/89,	Table 1)

特性曲线（Typical Performance Curves）

订货信息与供货形式

型号	RoHS	Compliant	封装	Surface	Mount	Gull	Wing	Tape&	包装	60747-5-5	数量
ACPL-T350	is UL	Recognized	with 3750 Vrms	for 1	minute per	UL1577.
number	RoHS	Compliant	Package	Surface	Mount	Gull	Wing	Tape&	Reel	60747-5-5	Quantity
ACPL-T350		-000E	300mil DIP-8								50 per tube
RoHS	compliant option	will use	‘-XXXE‘.
Approval	under:					Approval	under	UL	1577,	component	recognition
Recommended	Pb-Free	IR Profi	le

应用领域 Applications

ANODE 2 7 VO IGBT/MOSFET gate drive Industrial InvertersN/C 4 5 VEESHIELD

资料下载

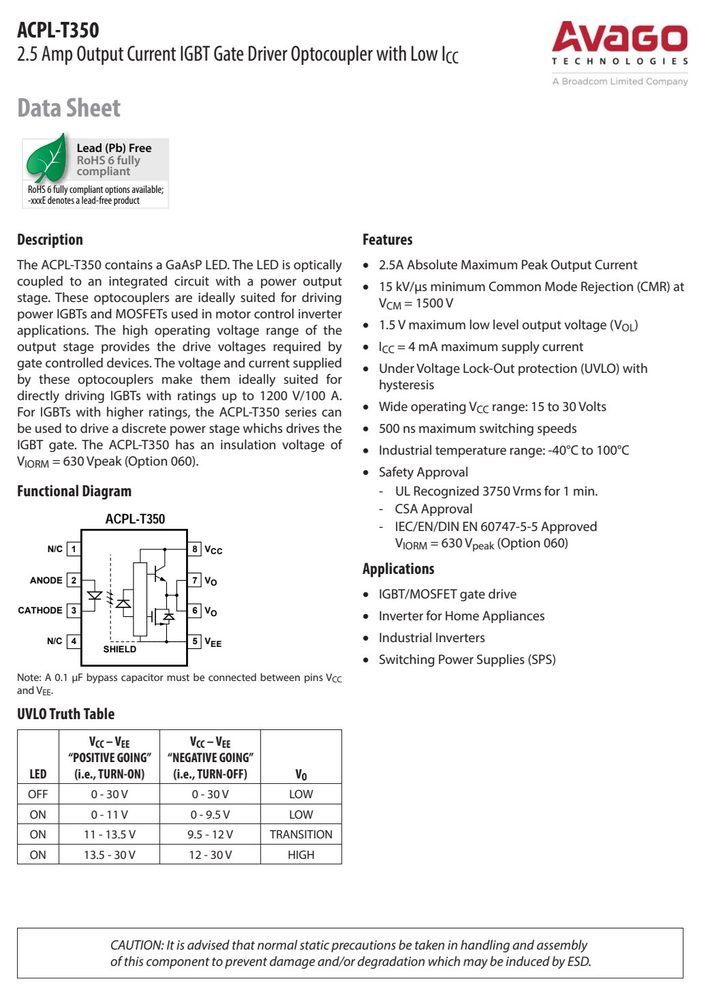

📄 ACPL-T350-560E 规格书 PDF（同系列主干）
