品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。

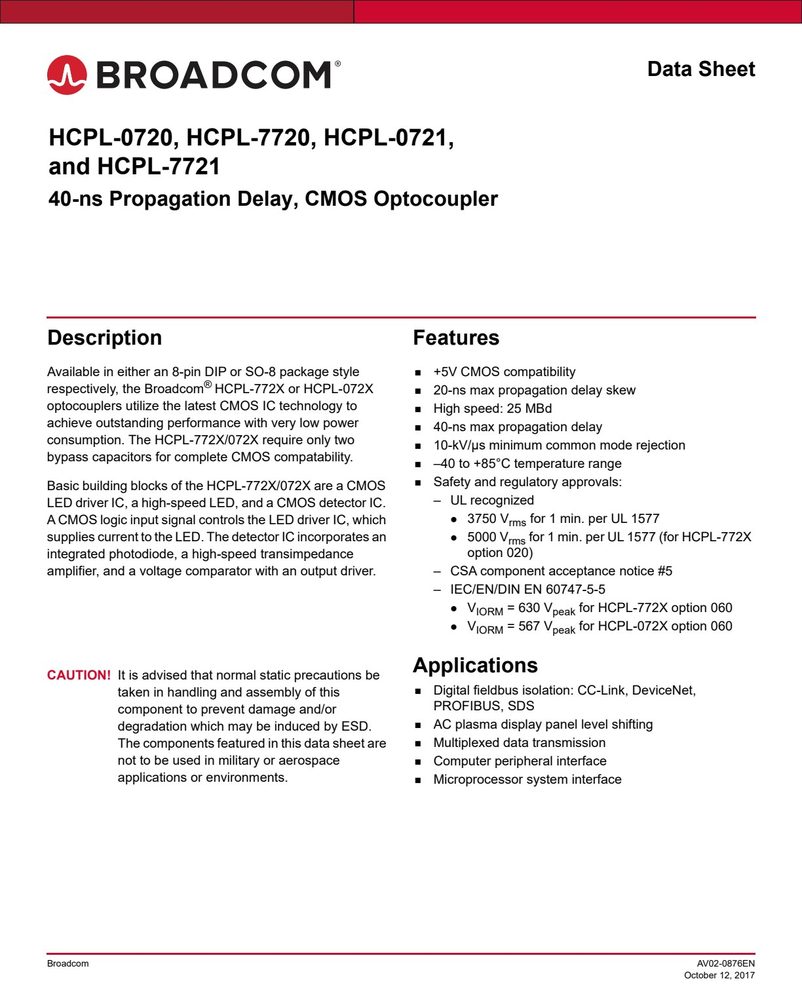

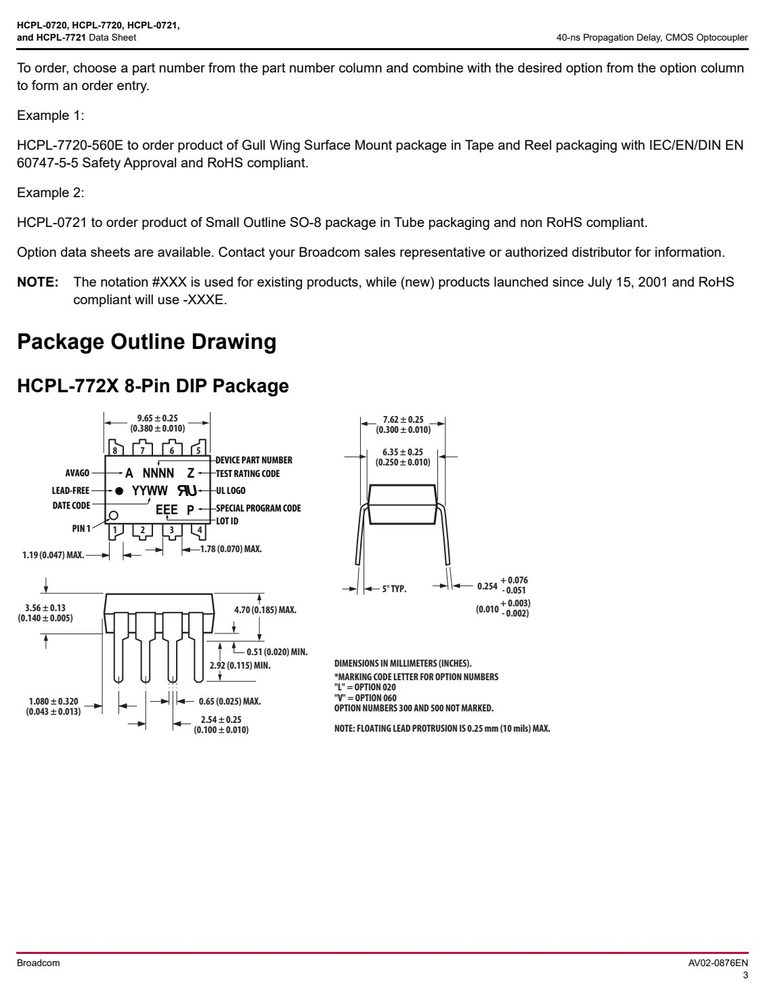

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | GND | |
| 6 | V | |
| 7 | NC | |
| 8 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- 6.0
- 工作温度 TA
- 85
产品特点 Features
- +5V CMOS compatibility
- 20-ns max propagation delay skew
- High speed: 25 MBd
- 40-ns max propagation delay
- 10-kV/μs minimum common mode rejection
- –40 to +85°C temperature range
- Figure 15: Isolated Node with Transceiver Powered by the Network
- AC LINE
- NON ISO
- NODE/APP SPECIFIC
- 5 V μP/CAN
- GALVANIC
- HCPL HCPL *HCPL
- ISOLATION
- 772x/072x 772x/072x 772x/072x
- BOUNDARY
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 |
|---|---|---|---|---|
| Storage Temperature | T | –55 | 125 | °C |
| Ambient Operating Temperaturea | T A | –40 | 85 | °C |
| Supply Voltages | V , V DD1 DD2 | 0 | 6.0 | V |
| Input Voltage | V I | –0.5 | V + 0.5 DD1 | V |
| Output Voltage | V O | –0.5 | V + 0.5 DD2 | V |
| Average Output Current | I | — | 10 | mA |
| Lead Solder Temperature | 260°C | for 10 sec., 1.6 mm | below seating plane. | |
| Solder Reflow Temperature Profile | See Reflow Soldering | Profile section. | ||
| Broadcom | AV02-0876EN |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 772X | 072X | 单位 | 条件 |
|---|---|---|---|---|---|
| (Clearance) | shortest | distance through air. | |||
| (Creepage) | shortest | distance path along body. | |||
| (Internal Clearance) | also known | as distance through insulation. | |||
| Tracking Resistance | CTI | ≥175 | ≥175 | V DIN IEC | 112/VDE 0303 Part 1. |
| Isolation Group | IIIa | IIIa | Material | Group (DIN VDE 0110, 1/89, Table 1). | |
| Broadcom | AV02-0876EN | ||||
| and HCPL-7721 Data Sheet | 40-ns Propagation Delay, | CMOS Optocoupler |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| All typical specifications are | at T = +25°C, | V = V | = +5V. | |||||
| Logic Low Input Supply Current | I DD1L | — | 6.0 | 10.0 | mA | V = 0V I | a | |
| Logic High Input Supply Current | I DD1H | — | 1.5 | 3.0 | mA | V = V I DD1 | a | |
| Output Supply Current | I | — | 7.7 | 9.0 | mA | |||
| I | — | 5.8 | 9.0 | mA | ||||
| Input Current | I | –10 | — | 10 | μA | |||
| Logic High Output Voltage | V | 4.4 | 5.0 | — | V | I = –20 μA, V = V | 1, 2 | |
| OH | O I | IH | ||||||
| 4.0 | 4.8 | — | V | I = –4 mA, V = V | ||||
| Logic Low Output Voltage | V OL | — | 0 | 0.1 | V | I = 20 μA, V = V O I IL | ||
| — | — | 0.1 | V | I = 400 μA, V = V O I | IL | |||
| — | 0.5 | 1.0 | V | I = 4 mA, V = V | ||||
| and HCPL-7721 Data Sheet | 40-ns Propagation | Delay, CMOS | Optocoupler | |||||
| Common Mode | |CM | H | 10 | 20 | — | kV/μs | V = V , V > 0.8 V I DD1 O DD1 | , | d |
| V = 1000V V = 0V, | ||||||||
| Transient Immunity at Logic | High | — | — | — | CM I | |||
| Output | V O > 0.8V, V CM = 1000V | |||||||
| Common Mode Transient | Immunity |CM | | 10 | 20 | — | ||||
| Input Dynamic Power Dissipation | C | — | 60 | — | pF | e | ||
| Output Dynamic Power Dissipation | C | — | 10 | — | ||||
| PHL | I | O | ||||||
| PLH | I | O |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| HCPL-772X | 封装 | with | Gull | Wing | Surface | Mount | 包装 | 300 |
|---|---|---|---|---|---|---|---|---|
| HCPL-772X | Package | with | Gull | Wing | Surface | Mount | Option | 300 |
| HCPL-072X | Outline | Drawing | (Small | Outline | SO-8 | Package) | ||
| NUMBER | 3.95 | 7.49 | ||||||
| LEAD-FREE | YYWW DATE | CODE | (0.156) | (0.295) | ||||
| Broadcom | AV02-0876EN |
应用领域 Applications
