品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。
产品实拍图

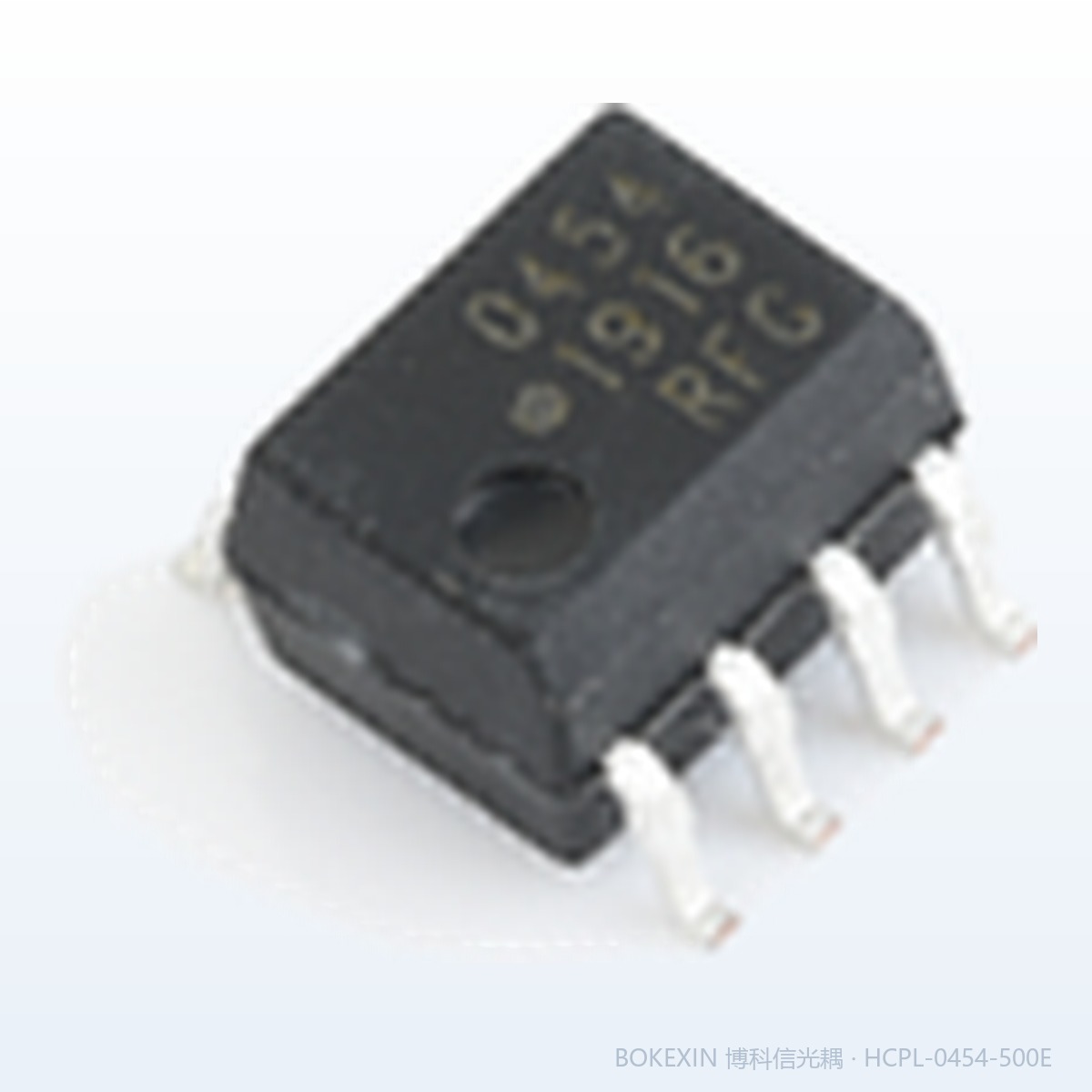

本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。
产品应用与封装尺寸

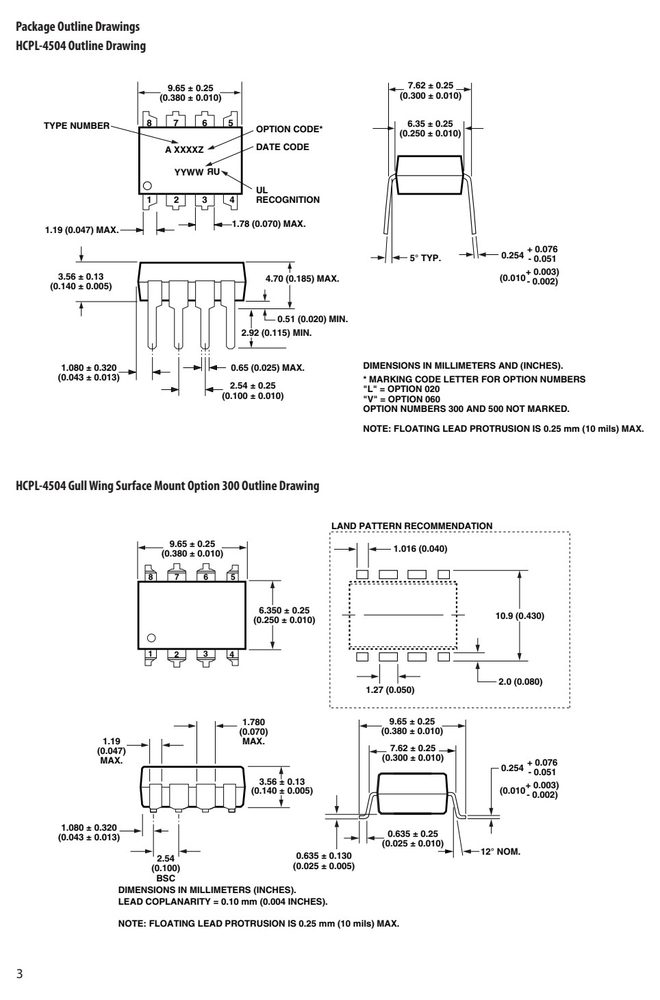

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

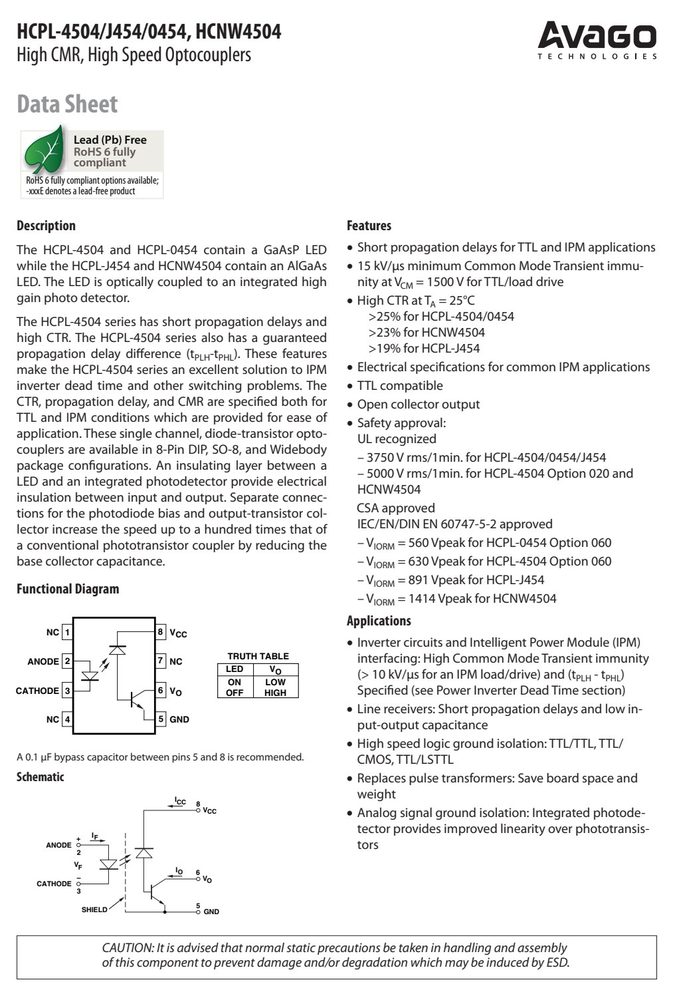

引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 4 | RECOGNITION | |
| 5 | GND | |
| 6 | VO | |
| 7 | NC | |
| 8 | VCC |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- 30
- 工作温度 TA
- 100
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 器件 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | ||
| Operating Temperature | T | HCPL-4504 | -55 | 100 | °C | |
| HCNW4504 | -55 | 85 | ||||
| Average Forward Input Current | I | 25 | mA | 1 | ||
| Peak Forward Input Current | I | HCPL-4504 HCPL-J454 | 50 40 | mA | 2 | |
| Peak Transient Input Current | I | HCPL-4504 HCPL-J454 HCPL-J454 | 1 0.1 3 | A | ||
| Input Power Dissipation | P | HCPL-4504 HCPL-J454 | 45 40 | mW | 3 | |
| Average Output Current (Pin 6) | I | 8 | mA | |||
| Peak Output Current | I | 16 | mA | |||
| Supply Voltage (Pin 8-5) | V | -0.5 | 30 | V | ||
| Output Voltage (Pin 6-5) | V | -0.5 | 20 | V | ||
| Output Power Dissipation | P | 100 | mW | 4 | ||
| Lead Solder Temperature | T | HCPL-4504 | 260 | °C | ||
| Up to seating plane, | 10 seconds | HCNW4504 | 260 |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 4504 | -400E/-600E |
|---|---|---|---|
| HCPL- | J454 All | ||
| Minimum External | L(101) | 7.1 | 8.0 |
| Minimum External | L(102) | 7.4 | 8.0 |
| Minimum Internal | 0.08 | 0.5 | |
| Minimum Internal | NA | NA | |
| Tracking Resistance | CTI | ≥175 | ≥175 |
| Isolation Group | IIIa | IIIa | |
| All Avago data | sheets report | the creepage | and clearance |
| inherent to the | optocoupler | component | itself. These di- |
| mensions are | needed as a | starting point | for the equip- |
| NA 4.0 mm Measured from input ter- | |||
| ≥175 ≥200 Volts DIN IEC 112/VDE 0303 Part 1 | |||
| 0110, 1/89, Table 1) | |||
| Minimum Internal | NA | NA | |
| Tracking Resistance | CTI | ≥175 | ≥175 |
| Isolation Group | IIIa | IIIa | |
| All Avago data | sheets report | the creepage | and clearance |
| inherent to the | optocoupler | component | itself. These di- |
| mensions are | needed as a | starting point | for the equip- |
| ment designer | when determining | the | circuit insulation |
| However, once | mounted on a | printed | circuit board, mini- |
| mum creepage | and clearance | requirements | must be |
| met as specifi ed | for individual | equipment | standards. For |
| NA 4.0 mm Measured from input ter- | |||
| ≥175 ≥200 Volts DIN IEC 112/VDE 0303 Part 1 | |||
| 0110, 1/89, Table 1) |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 型号 | Compliant | Compliant2 | 封装 | Mount | Wing | & | 包装 | 额定值 | EN | 60747-5-2 | 数量 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HCNW4504 | are approved | under CSA | Component | Acceptance | Notice | #5, File | CA 88324. | ||||
| Part | RoHS | non RoHS | Surface | Gull | Tape | 1 Minute | IEC/EN/DIN | ||||
| HCPL-4504 | -320E | #320 | X | X | X | 50 per tube | |||||
| HCPL-J454 | -400E | NA | X | X | X | 50 per tube | |||||
| HCNW4504 | -300E | #300 | Widebody | X | X | X | X | 42 per tube | |||
| with | IEC/EN/DIN EN | 60747-5-2 | Safety Approval | and RoHS | compliant. |
