Name: AVAGO ACPL-P456-500E
Brand: AVAGO
Availability: InStock

品牌说明

本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通混称。本页参数与规格书均取自该产品线原厂资料。

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

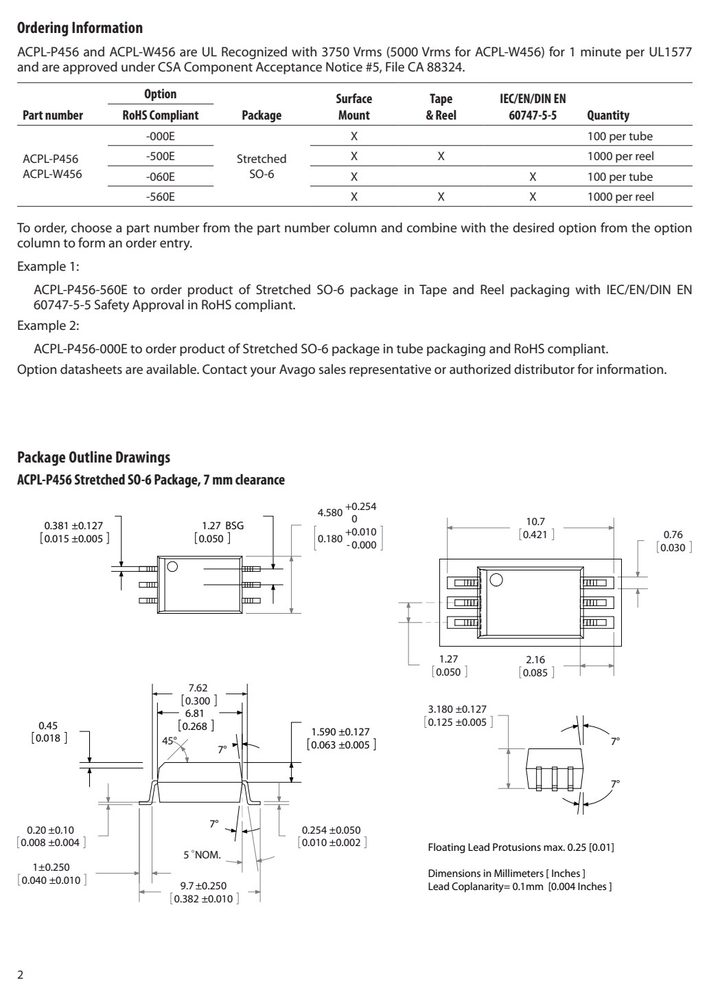

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 4
电流传输比 CTR: 5
电源电压 VCC: 30
工作温度 TA: 100

产品特点 Features

The ACPL-P456 and ACPL-W456 contain a GaAsP LED kΩ Performance Specified for Common IPM Applications optically coupled to an integrated high gain photo Over Industrial Temperature Range.
detector. Minimized propagation delay difference kΩ Short Maximum Propagation Delays between devices make these optocouplers excellent
ACPL-W456 Stretched SO-6 Package, 8 mm clearance
+0.254
4.580
0.381 ±0.127 1.27 BSG 0 12.650 0.760
0.015 ±0.005 0.050 +0.010 0.498 0.030
0.180
-0.000
+0.127 [0.300] 1.270 1.905
6.807
0 0.050 0.075
+0.005
0.268
1.590 ±0.127
7° 3 . 1 8 0 ± 0 . 1 2 7

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	100	°C
Average Input Current	I		25	mA	1
Peak Input Current	I		50	mA	2
Peak Transient Input Current	I		1.0	A
Average Output Current	(Pin 5) I		15	mA
Output Voltage (Pin 5-4)	V	-0.5	30
Supply Voltage (Pin 6-4)	V	-0.5	30
Output Power Dissipation	P		100	mW	3
Total Power Dissipation	P		145	mW	4
Infrared and Vapor Phase	Reflow Tem- See Reflow	Thermal	Profile.

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	ACPL-P456	ACPL-W456	单位	条件
V x 1.875=V ,	100% Production Test with	t =1 sec,	V		2138 1671 V
IORM PR		m		PR	peak
V x 1.5=V , Type	and Sample Test, t =10	sec,	V		1824 1425 V
IORM PR	m			PR	peak
Highest Allowable	Overvoltage		V		8000 6000 V
Minimum External Air	Gap L(101)	7.0	8.0	mm	Measured from input terminals to output
(External Clearance)					terminals, shortest distance through air.
Minimum External	Tracking L(102)	8.0	8.0	mm	Measured from input terminals to output
(External Creepage)					terminals, shortest distance path along body.
Minimum Internal	Plastic Gap	0.08	0.08	mm	Through insulation distance conductor to
(Internal Clearance)					conductor, usually the straight line distance
Minimum Internal	Tracking	NA	NA	mm	Measured from input terminals to output
(Internal Creepage)					terminals, along internal cavity.
Tracking Resistance	CTI	>175	>175	V	DIN IEC 112/VDE 0303 Part 1
Isolation Group		IIIa	IIIa		Material Group (DIN VDE 0110, 1/89, Table 1)

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	Typ.*	最大	单位	测试条件	图号	备注
					A	CC		F(on)
Current Transfer Ratio	CTR	44	90		%	I = 10 mA, V = 0.6	V	5
Low Level Output Current	I OL	4.4	9.0		mA	I = 10 mA, V = 0.6 F O	V 1, 2
Low Level Output Voltage	V		0.3	0.6	V	I = 2.4 mA
Input Threshold Current	I TH		1.5	5.0	mA	V = 0.8 V, I = 0.75 O O	mA 1	9
High Level Output Current	I		5	50	μA	V = 0.8 V	3
High Level Supply Current	I CCH		0.6	1.3	mA	V = 0.8 V, V = Open F O		9
Low Level Supply Current	I CCL		0.6	1.3	mA	I = 10 mA, V = F O	Open	9
Input Forward Voltage	V		1.5	1.8	V	I = 10 mA	4
Temperature Coefficient	ΔV /ΔT		-1.6		mV/°C	I = 10 mA
Input Capacitance	C		60		pF	f = 1 MHz, V = 0 V

特性曲线（Typical Performance Curves）

订货信息与供货形式

型号	型号2	RoHS	Compliant	封装	Mount	&	包装	60747-5-5	数量
and	are approved	under	CSA	Component Accep tance	Notice #5,	File CA	88324.
Part	number	RoHS	Compliant	Package	Mount	&	Reel	60747-5-5	Quantity
column	to form	an order	entry.

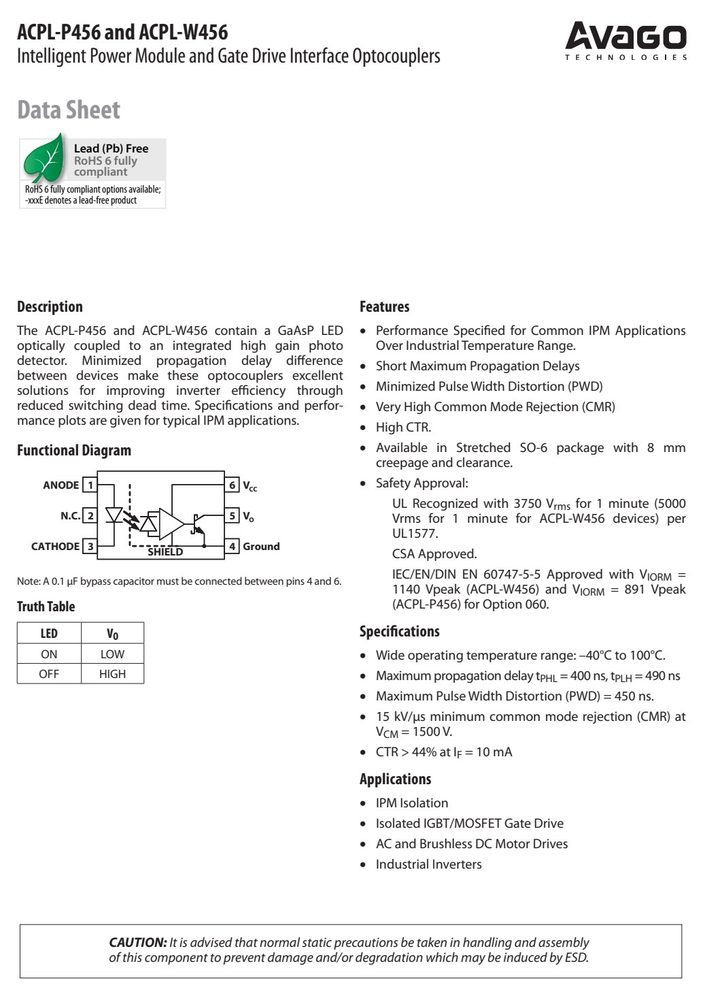

应用领域 Applications

kΩ IPM IsolationkΩ Isolated IGBT/MOSFET Gate DrivekΩ AC and Brushless DC Motor DriveskΩ Industrial InvertersPerformance+5 V 1 60.1 μF 20 kΩ2 5 OUT ++ V = 15 V310 ΩSHIELD100 pF TOTALCAPACITANCE

资料下载

📄 ACPL-P456-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。
