品牌说明
本型号为 AVAGO（安华高） 产品。安华高与博通（Broadcom）属于同一家公司：安华高 2005 年由安捷伦分拆上市，2016 年被博通收购，成为博通旗下半导体业务，业内常以 AVAGO／安华高／博通 混称。本页参数与规格书均取自该产品线原厂资料。

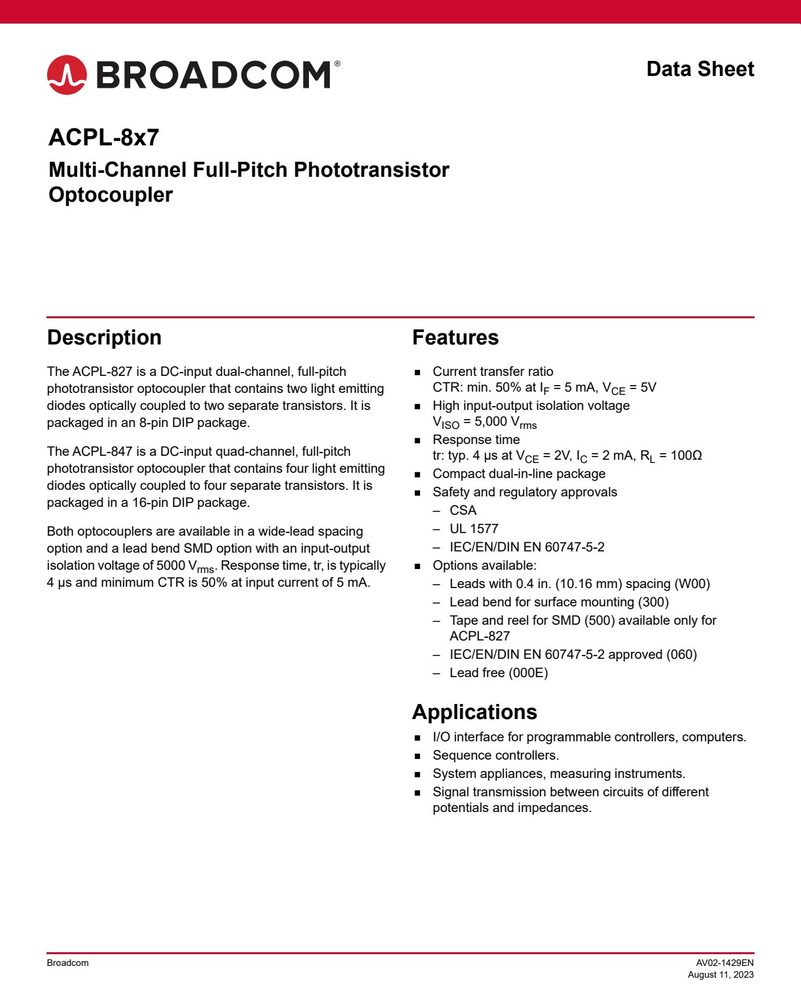

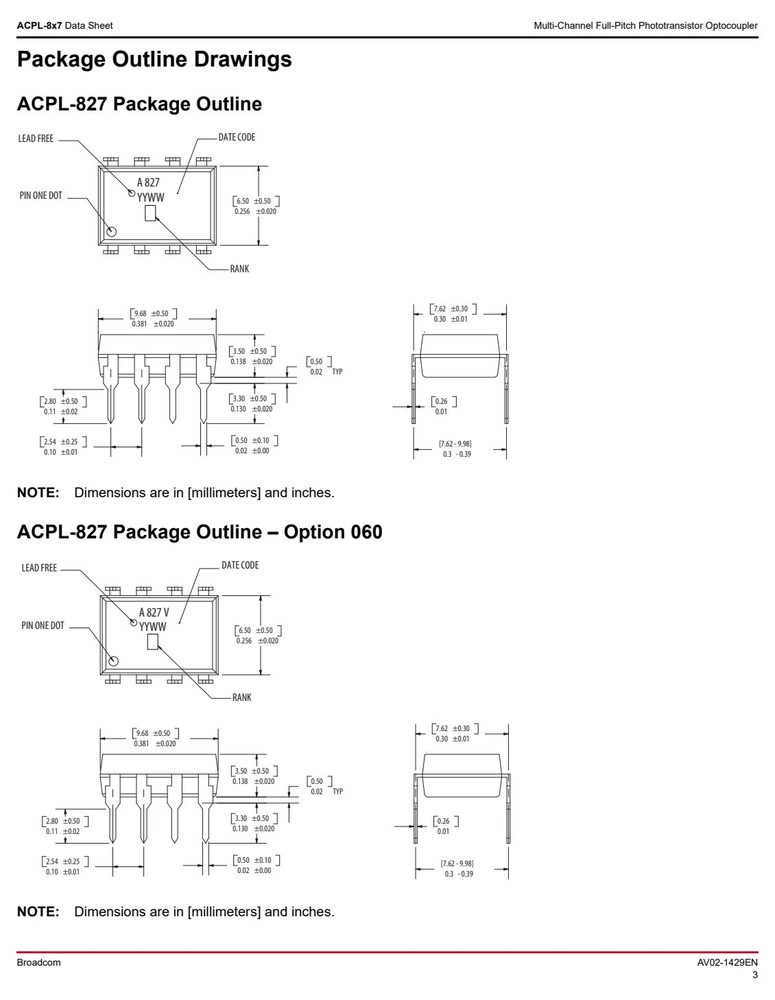

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 20 mA
- 电流传输比 CTR
- 30
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 70
- 隔离电压 VISO
- 5000
- 工作温度 TA
- 100
产品特点 Features
- The ACPL-827 is a DC-input dual-channel, full-pitch
- ACPL-8x7 Data Sheet
- ACPL-827 Pin Layout
- 88 77 66 55
- 11 22 33 44
- Pin 1, 3 Anode
- Pin 2, 4 Cathode
- Pin 5, 7 Emitter
- Pin 6, 8 Collector
- Multi-Channel Full-Pitch Phototransistor Optocoupler
- ACPL-847 Pin Layout
- 1166 1155 1144 1133 1122 1111 1100 99
- 11 22 33 44 55 66 77 88
- Pin 1, 3, 5, 7 Anode
- Pin 2, 4, 6, 8 Cathode
- Pin 9, 11, 13, 15 Emitter
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 |
|---|---|---|---|---|
| Storage Temperature | T | –55 | 125 | °C |
| Operating Temperature | T | –30 | 100 | °C |
| Junction Temperature | T | — | 125 | °C |
| Average Forward Current | I | — | 50 | mA |
| Input Power Dissipation | P | — | 70 | mW |
| Collector Current | I | — | 50 | mA |
| Collector-Emitter Voltage | V | — | 70 | V |
| Emitter-Collector Voltage | V | — | 6 | V |
| Isolation Voltage (AC for 1 min, R.H. 40% | ~ 60%) V | — | 5000 | V |
| Collector Power Dissipation | P | — | 150 | mW |
| Total Power Dissipation | P | — | 200 | mW |
| Lead Solder Temperature | 260°C for | 10 seconds, 1.6 | mm below seating | plane |
| Broadcom | AV02-1429EN |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 包装 | and | a | lead | bend | SMD | 包装2 | with | an | input-output |
|---|---|---|---|---|---|---|---|---|---|
| packaged | in | an | 8-pin | DIP | package. | ||||
| The | ACPL-847 | is | a | DC-input | quad-channel, | full-pitch | |||
| phototransistor | optocoupler | that | contains | four | light emitting | ||||
| diodes | optically | coupled | to four | separate | transistors. It is V = 5,000 V | ||||
| tr: typ. 4 μs at V = 2V, I = 2 mA, R = 100Ω |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 | 备注 |
|---|---|---|---|---|---|---|---|
| Over recommended | operating conditions unless | otherwise | specified. | ||||
| Forward Voltage | V | — | 1.2 | 1.4 | V | I = 20 mA | |
| Terminal Capacitance | C | — | 30 | 250 | pF | V = 0, f = 1 kHz | |
| Collector Dark Current | I CEO | — | — | 100 | nA | V = 20V, I = 0 mA CE F | |
| Collector-Emitter Breakdown | Voltage BV CEO | 70 | — | — | V | I = 0.1 mA, I = 0 mA C F | |
| Emitter-Collector Breakdown | Voltage BV ECO | 6 | — | — | V | I = 10 μA, I = 0 mA E F | |
| Collector Current | I | 2.5 | — | 30 | mA | I = 5 mA, V = 5V | CTR = (I /I ) × 100% |
| C | F CE | C F |
应用领域 Applications
