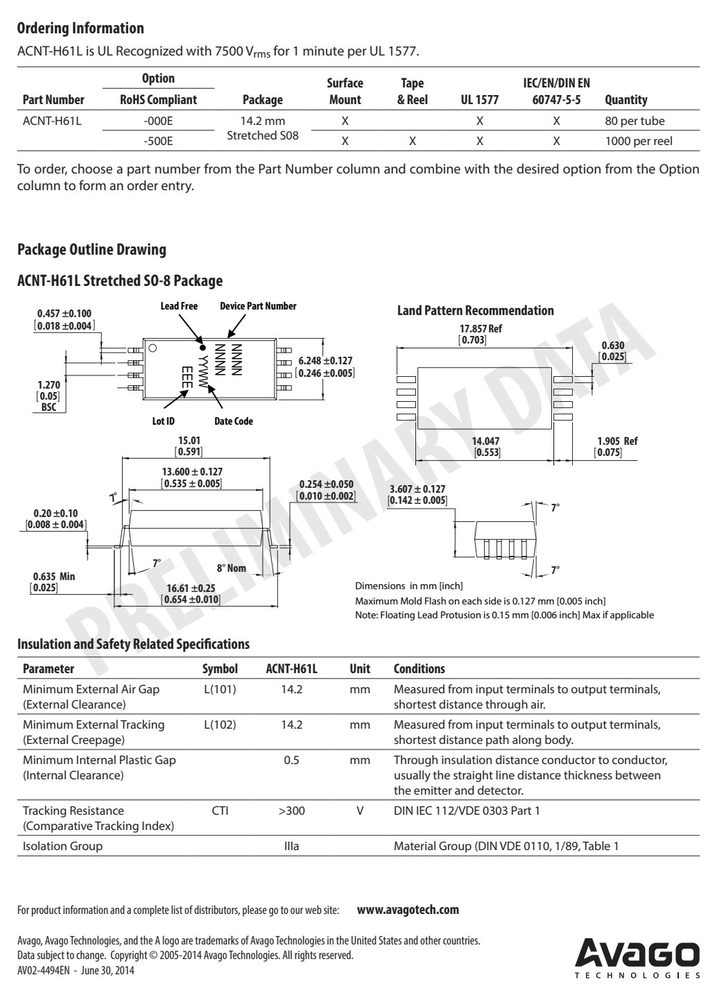

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
产品特点 Features
- This optocoupler supports both 3.3 V and 5 V supply age with guaranteed AC and DC operational par ameters from temperature range -40 °C to +105 °C. The output
- Low I power supply consumption: 2 mA max.
- Input current capability: 5 mA min.
- Package: Stretched SO-8
- 20 kV/µs minimum Common Mode Rejection (CMR) at
- V = 1Y000 V
- High Speed: 10 MBd min.
- Guaranteed AC and DC performance over wide temperature: -40 °C to +105 °C
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | ACNT-H61L | 单位 | 条件 |
|---|---|---|---|---|
| (External Clearance) | shortest distance through air. | |||
| (External Creepage) | shortest distance path along body. | |||
| Minimum Internal | Plastic Gap | 0.5 | mm | Through insulation distance conductor to conductor, |
| (Internal Clearance) | usually the straight line distance thickness between | |||
| Tracking Resistance | CTI | >300 | V | DIN IEC 112/VDE 0303 Part 1 |
| (Comparative Tracking | Index) | |||
| Isolation Group | IIIa | Material Group (DIN VDE 0110, 1/89, Table 1 |
应用领域 Applications
