Name: EVERLIGHT 6N137
Brand: EVERLIGHT
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 1.8
电源电压 VCC: 7.0
工作温度 TA: to 85°C

产品特点 Features

High speed 10Mbit/s
10kV/μs min. common mode transient immunity
(EL2611)
Guaranteed performance from -40 to 85℃
Logic gate output A 0.1μF bypass capacitor must be
High isolation voltage between input connected between pins 8 and 5 *3

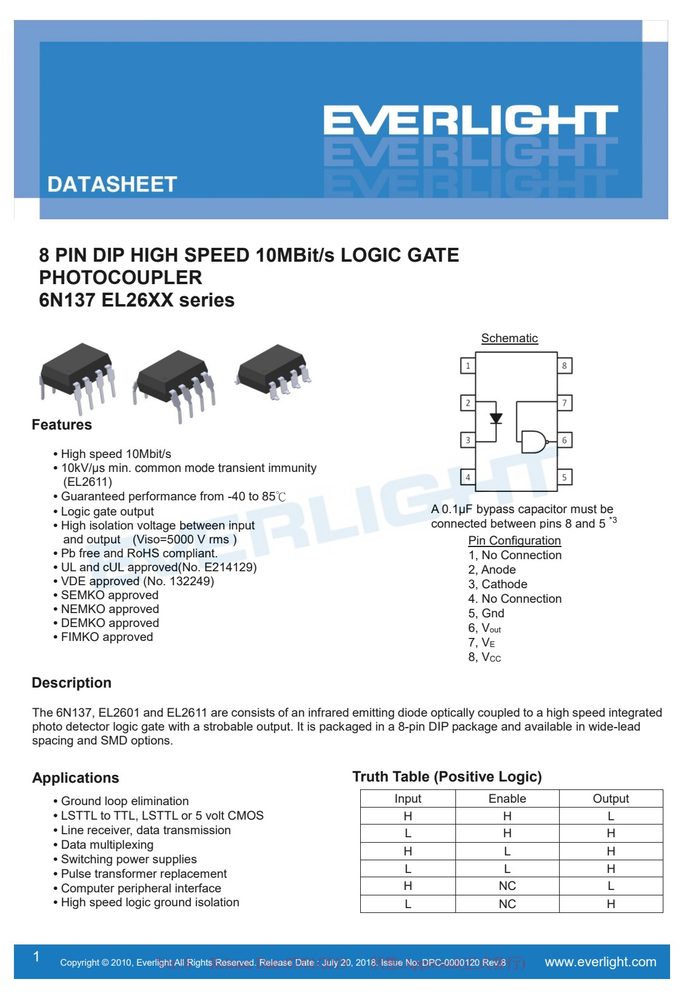

DATASHEET
8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE
PHOTOCOUPLER
6N137 EL26XX series

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	额定值	单位
Forward current	I	50	mA
Enable input voltage Not exceed	V by
	CC V	5.5	V
more than 500mV
Power dissipation	P	100	mW
	P	85	mW
Output current	I	50	mA
Output voltage	V	7.0	V
Supply voltage	V	7.0	V
Output Power Dissipation	P	100	mW

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	额定值	单位
Operating temperature	T	-40 ~ +85	°C
Storage temperature	T	-55 ~ +125	°C
Soldering temperature *2	T	260	°C

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	条件
Forward voltage	V	-	1.4	1.8	V	I = 10mA
	V /T	-	-1.8	-	mV/°C	I =10mA
of forward voltage	F A					F
Input capacitance	C	-	60	-	pF	V =0, f=1MHz
						I =0mA, V =0.5V,
High level supply current	I	-	7	10	mA	V =5.5V
Low level supply current	I	-	9	13	mA	I =10mA, V =5.5V
High level enable current	I	-	- 0.6	-1.6	mA	V =2.0 V, V =5.5V
Low level enable current	I	-	- 0.8	-1.6	mA	V =0.5 V, V =5.5V
	V	2.0	-	-	V	I =10mA, V =5.5V
	V	-	-	0.8	V	I =10mA, V =5.5V
voltage*4	EL					F CC
Transfer Characteristics	(Ta=-40	to 85°C	unless	specified	otherwise)
HIGH Level Output						V =5.5V, V =5.5V,
	I	-	2.1	100	uA
Current						I =250μA, V =2.0V
LOW Level Output						V = 5.5V, I =5mA,
	V	-	0.35	0.6	V
Current						V =2.0V,I =13mA
						V = 5.5V, V =0.6V,
Input Threshold Current	I	-	2.5	5	mA
						V =2.0V,I L=13mA
Switching Characteristics	(T =-40 to	85°C, V	=5V, I	=7.5mA	unless specified	otherwise)
	a	CC	F
						C = 15pF, R =350Ω,
to output High level*5	T	-	35	75	ns	L L T =25°C
						C = 15pF, R =350Ω,
to output Low level*6	T	-	40	75	ns	L L T =25°C
Pulse width distortion	\|Tphl – Tplh\|	-	5	35	ns	C = 15pF, R =350Ω
	tr	-	40	-	ns	C = 15pF, R =350Ω
	tf	-	10	-	ns	C = 15pF, R =350Ω
Switching Characteristics	(T =-40 to	85°C, V	=5V, I	=7.5mA	unless specified	otherwise)
	a	CC	F
Delay Time to Output					I	= 7.5mA , V =3.5V,
	t	-	15	-	ns
High Level*9	ELH				C	= 15pF, R =350Ω
Delay Time to Output					I	= 7.5mA , V =3.5V,
	t	-	15	-	ns
Low Level*10	EHL				C	= 15pF, R =350Ω
					I	= 0mA , V =2.0V,
6N137		-	-	-		R =350Ω, T =25°C
					V	=10Vp-p (Fig.14)
Common					I	F = 0mA , V OH =2.0V,
Mode EL2601		5,000	-	-		R L =350Ω, T A =25°C
Transient					V	=50Vp-p (Fig.14)
Immunity at	H				I	= 0mA , V =2.0V,
EL2611		10,000	-	-		R =350Ω, T =25°C
					V	=400Vp-p (Fig.14)
					I	= 0mA , V =2.0V,
EL2611		20,000	-	-		R =350Ω, T =25°C
					V	=400Vp-p (Fig.15)
					I	= 7.5mA , V =0.8V,
6N137		-	-	-		R =350Ω, T =25°C
					V	=10Vp-p (Fig.14)
Common					I F	= 7.5mA , V OL =0.8V,
Mode EL2601		5,000	-	-		R L =350Ω, T A =25°C
Transient					V	=50Vp-p (Fig.14)
Immunity at	L				I	= 7.5mA , V =0.8V,
EL2611		10,000	-	-		R =350Ω, T =25°C
					V	=400Vp-p (Fig.14)
					I	= 7.5mA , V =0.8V,
EL2611		20,000	-	-		R =350Ω, T =25°C
					V	=400Vp-p (Fig.15)

订货信息与供货形式

包装	M	型号
Package		Dimension
Standard		DIP Type
Option	M	Type
Option	S	Type
Option	S1	Type

应用领域 Applications

Line receiver, data transmissionL H HData multiplexingH L HSwitching power suppliesL L HPulse transformer replacementComputer peripheral interface H NC LDATASHEETPHOTOCOUPLER6N137 EL26XX seriesPropagation delay time

资料下载

📄 6N137 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。
